501 Series Pan System

501 Series Pan System

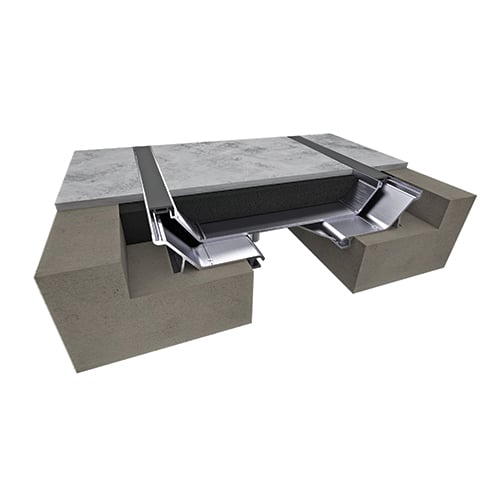

501 expansion joint pan system

501 Series Pan System

×

Key Specifications

Designed for generous thermal and seismic movement requirements and narrow sight lines that minimize aesthetic disruption to flooring finishes.

Learn more about this pan system on our Re-engineered 501 Pan System page.


  • Floor/Floor, Floor/Wall Conditions
  • Movement: +/- 50% (Modifiable up to +/- 100%)
  • Joint width: 2"-12" (Modifiable up to 32")
  • Optional vapor barrier
  • Optional fire rated
  • 1 7/8" (46mm) deep pan ideal for floor finishes with increased depth such as marble, granite, limestone and paver systems.
  • Pan profile provides a vertical surface to abut 3/8" (9 mm) thick tile against, eliminating the need to bevel flooring edges.
  • The combined use of center bars and tapered frame components resets the pan after seismic movement.
  • Seals are flush with flooring, easy to clean, and prevent dirt and water traps.
