471 Series Surface Mount Expansion Joint Covers | J471-A01-075 | Inpro Corporation

471 Series Surface Mount Expansion Joint Covers

Name: 471 Series Surface Mount Expansion Joint Covers | J471-A01-075 | Inpro Corporation
SKU: J471-A01-075

Mounting Position

Joint Opening (Imperial)

Install Condition

Color Palette

Application
Interior
Cover Type
Floor
Movement
Seismic = 50%+- (100% total)
Loading Class
Moderate
Floor Thickness
3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
Cover Finish
Mill Finish
Waterproofing
Optional
Fire Rating
Optional

Part Number

471 Series System FL/FL 3" Joint 10' (J471-A01-075)

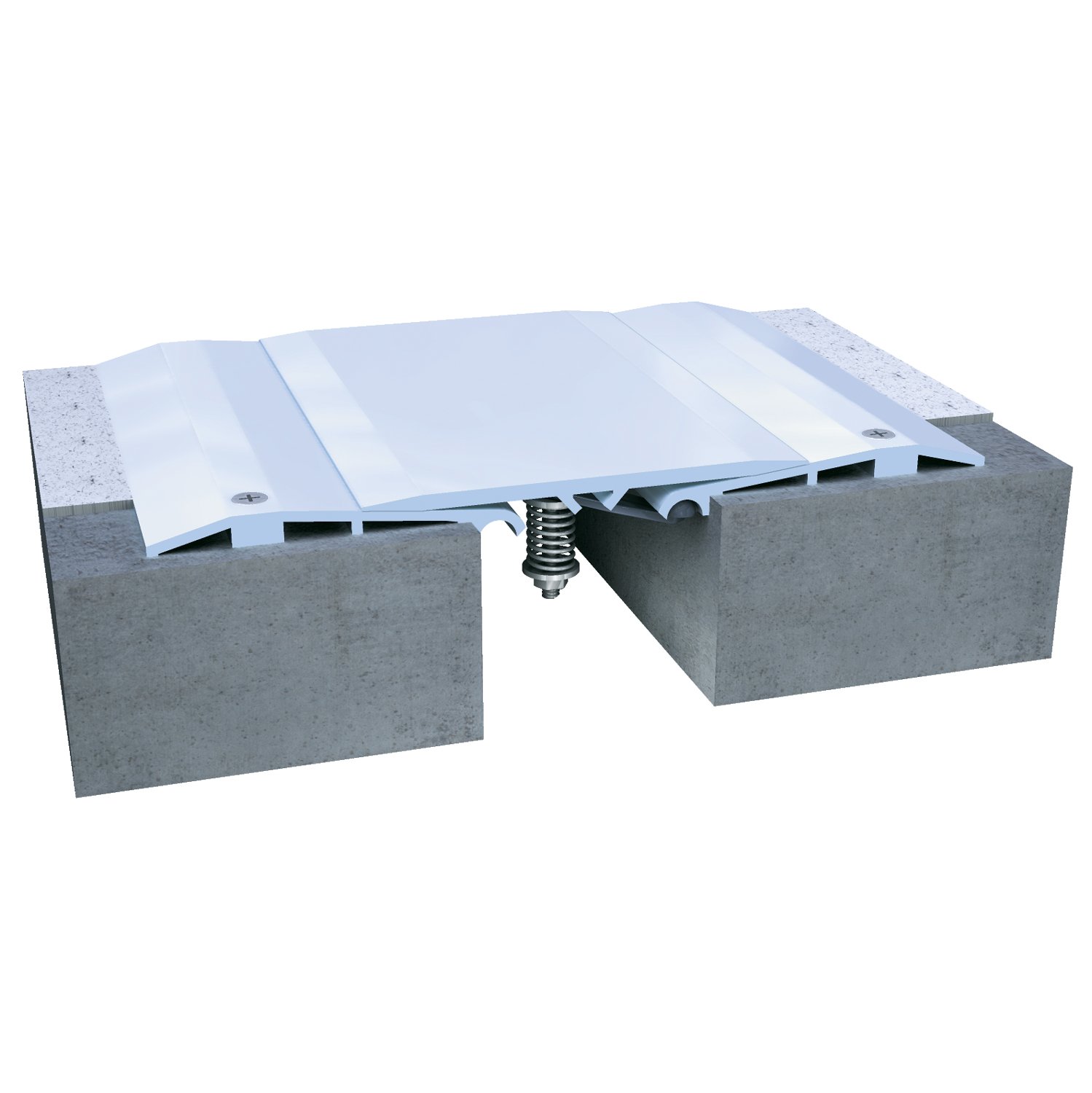

The 471 floor expansion joint system is a surface mounted system which is ideal for new construction or retrofit applications.

Install Condition: Floor/Floor Floor/Wall
Movement: +/- 50%
Joint width: 3"-4"
Load Capability: Moderate
Optional vapor barrier
Optional fire rated
Sheer movement unlimited
Tapered center plate design maintains a smooth transition
Centering bar maintains center plate position and allows for multi-directional seismic movement
Hidden cover plate bar hardware for clean look
471 Series – Series applies to retrofit surface mounted conditions only
