105 Series Sheet Vinyl Floor Expansion Joint Covers

Choose Color
  • Application
    Interior
  • Cover Type
    Floor
  • Movement
    Thermal = 25%+- (50% total)
  • Loading Class
    Standard
  • Floor Thickness
    1/8" [3mm] Thick or less (ie.- resilient/LVS)
  • Cover Finish
    Mill Finish
  • Waterproofing
    No
  • Fire Rating
    Optional
105 Series System FL/FL 1" Joint 10' (J105-A01-025)

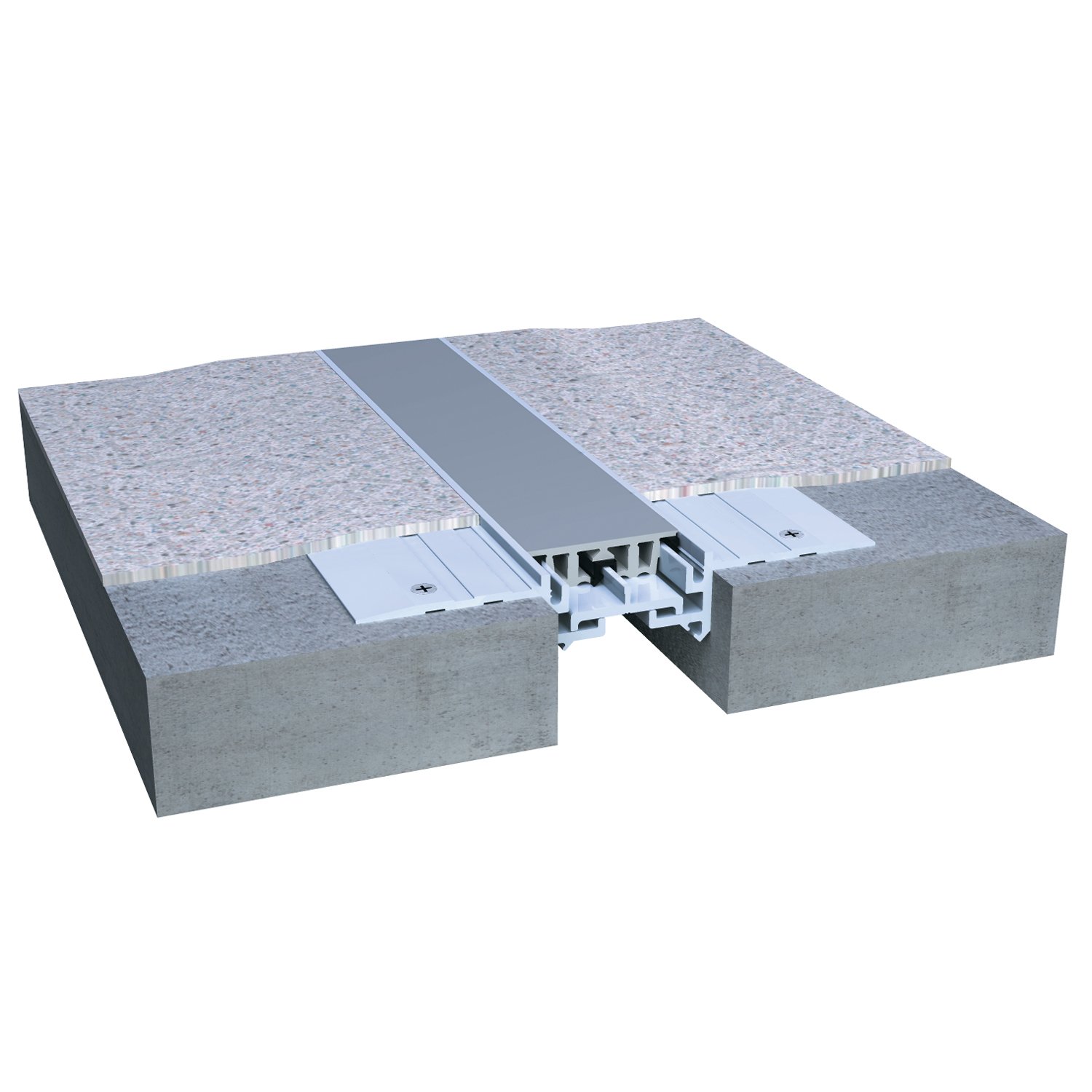

The 105 floor expansion joint system is designed for smooth transitions when installed with vinyl flooring. This surface mounted system is perfect for retrofit or new construction.

  • Install Condition: Floor/Floor Floor/Wall Conditions
  • Movement: +/- 25%
  • Joint width: 1"-2"
  • Load Capability: Standard
  • Optional vapor barrier
  • Optional fire rated
  • Dual durometer seal provides secure fit and optimal flexibility
  • Seals absorb limited serviceable seismic movement
  • Designed for renovation and surface mount installations
  • Adaptable to concrete epoxy vinyl and carpet finishes
  • Easy to clean flush seals. No dirt of water traps
  • Snap-fit design for easy on site assembly
  • Mill finish aluminum
  • Load rated
  • Integral vapor barrier option available
