108 Series Expansion Joint Systems

Choose Color
  • Application
    Interior
  • Cover Type
    Floor
  • Movement
    Thermal = 25%+- (50% total)
  • Loading Class
    Standard
  • Floor Thickness
    1/8" [3mm] Thick or less (ie.- resilient/LVS)
  • Cover Finish
    Mill Finish
  • Waterproofing
    No
  • Fire Rating
    Optional
108 Series System FL/FL 1" Joint (1.5"H) 10' (J108-A01-02538)

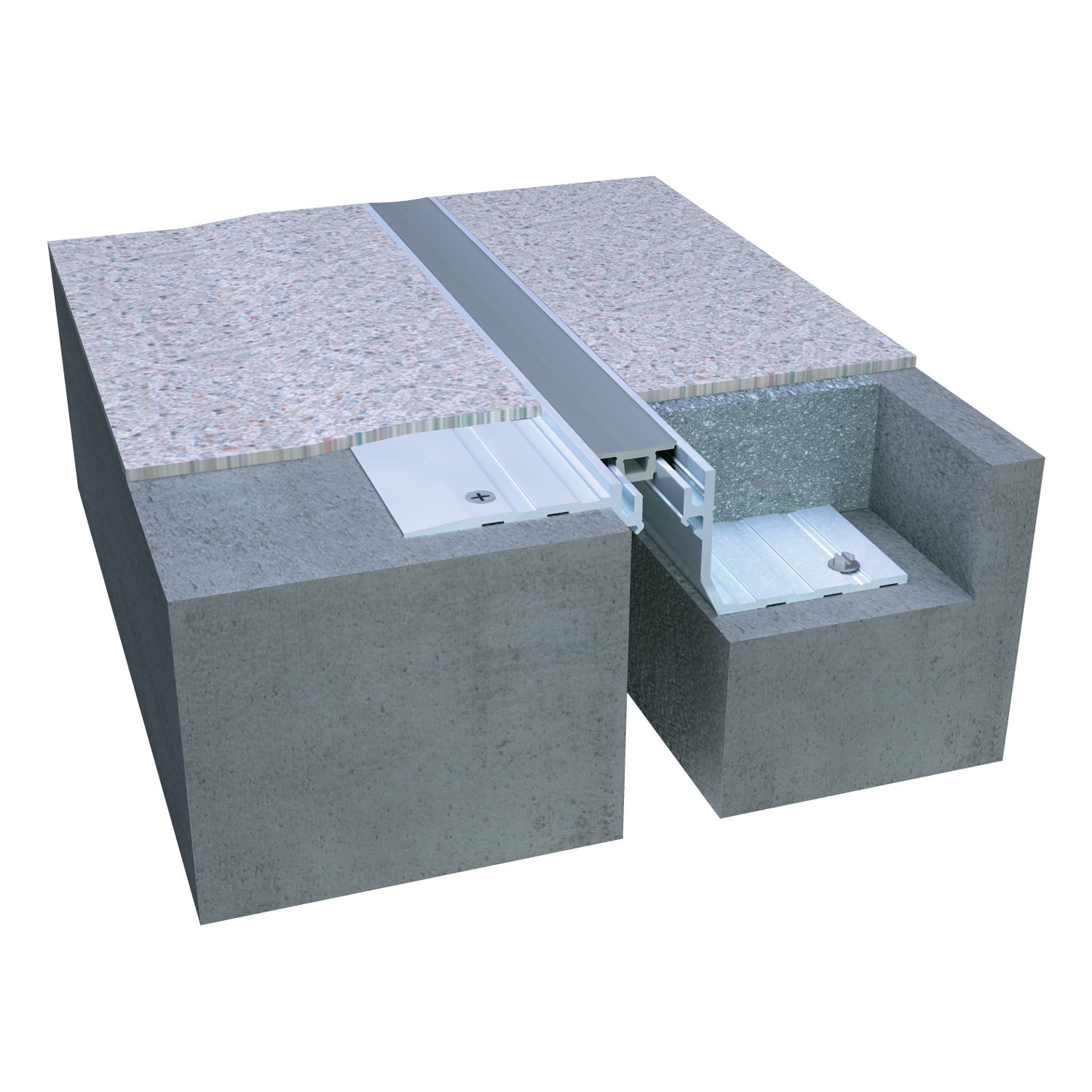

The 108 floor expansion joint system is designed for situations where the blockout only occurs on one side: retrofits additions and renovations. This system maintains a minimal sightline while accepting multiple flooring finishes.

  • Install Condition: Floor to floor
  • Movement: +/- 25%
  • Joint width: 1"-2"
  • Load Capability: Standard
  • Optional vapor barrier
  • Optional fire rated (A01)
  • Dual durometer seal provides secure fit and optimal flexibility
  • Seals absorb limited serviceable seismic movement
  • Adaptable to many floor finishes including concrete epoxy ceramic tile vinyl carpet marble and stone
  • Easy to clean flush seals. No dirt of water traps
  • Snap-fit design for easy on site assembly
  • Mill finish aluminum
  • Integral vapor barrier available
