110 Series VCT Expansion Joint Systems

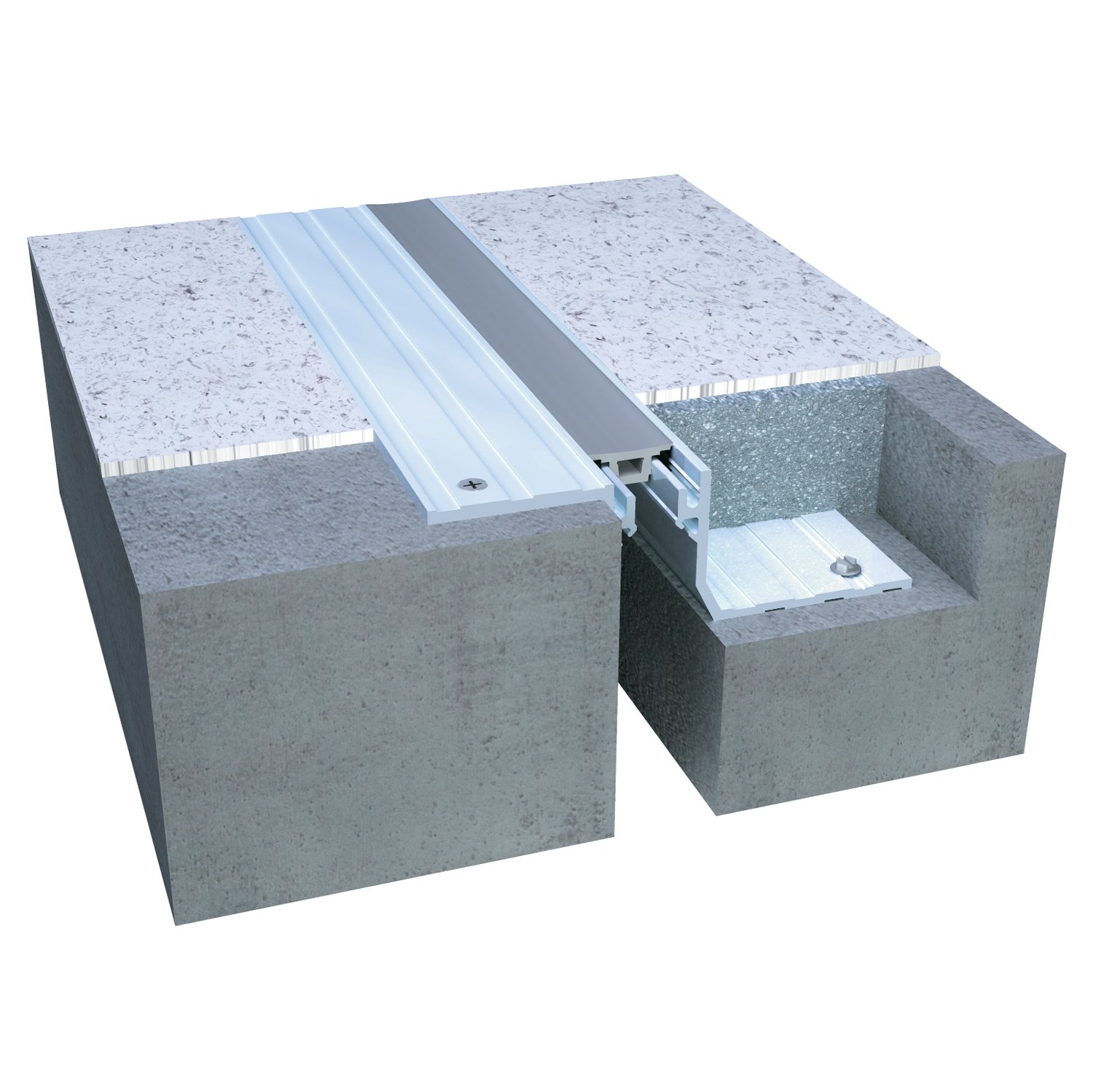

The 110 floor expansion joint system is designed for situations where the blockout occurs on one side only. It's unique construction can accommodate many flooring types: concrete epoxy ceramic tile carpet vinyl marble and stone.

• Install Condition: Floor to floor
• Movement: +/- 25%
• Joint width: 1"-3"
• Load Capability: Standard
• Optional vapor barrier
• Optional fire rated (A01)
• Dual durometer seal provides secure fit and optimal flexibility
• Seals absorb limited serviceable seismic movement
• Designed for retrofits additions and renovations where blockout occurs on one side only
• Adaptable to many floor finishes including concrete epoxy ceramic tile vinyl carpet marble and stone
• Easy to clean flush seals. No dirt of water traps
• Snap-fit design for easy on site assembly
• Mill finish aluminum
• Integral vapor barrier available
