120 Series Expansion Joint Systems | J120-A01-02538 | Inpro Corporation

^

120 Series Expansion Joint Systems

Choose Color
  • Application
    Interior
  • Cover Type
    Floor
  • Movement
    Thermal = 25%+- (50% total)
  • Loading Class
    Standard
  • Floor Thickness
    3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
  • Cover Finish
    Mill Finish
  • Waterproofing
    No
  • Fire Rating
    Optional

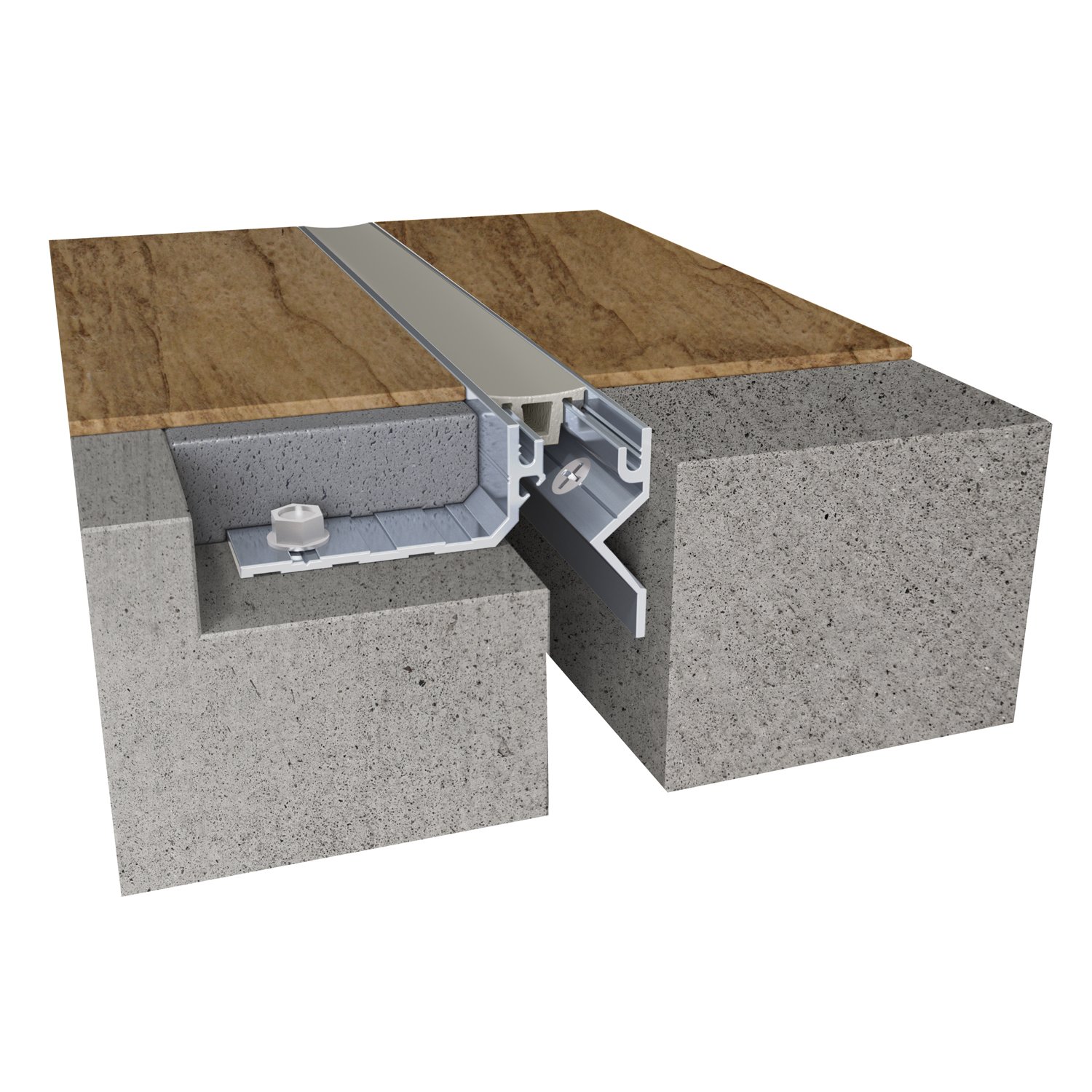

120 Series System FL/FL 1" Joint (1.5"H) 10' (J120-A01-02538)

The recessed mount frame of the 120 maintains a minimal sightline while accommodating many floor finishes. This floor expansion joint system is perfect for additions and renovations due to our multiple blockout depth configurations.

  • Install Condition: Floor/Floor Floor/Wall
  • Movement: +/- 25%
  • Joint width: 1"-1.5"
  • Load Capability: Standard
  • Optional vapor barrier
  • Optional fire rated
  • Recessed mount frames for minimal sightline adaptable with many floor finishes
  • Dual durometer seal provides secure fit and optimal flexibility
  • Seals absorb limited serviceable seismic movement
  • Snap-fit design for easy on site assembly
  • Standard loading capabilities
