421 Series Seal Floor Expansion Joint Covers
- ApplicationInterior
- Cover TypeFloor
- MovementSeismic = 50%+- (100% total)
- Loading ClassModerate
- Floor Thickness3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
- Cover FinishMill Finish
- WaterproofingOptional
- Fire RatingOptional

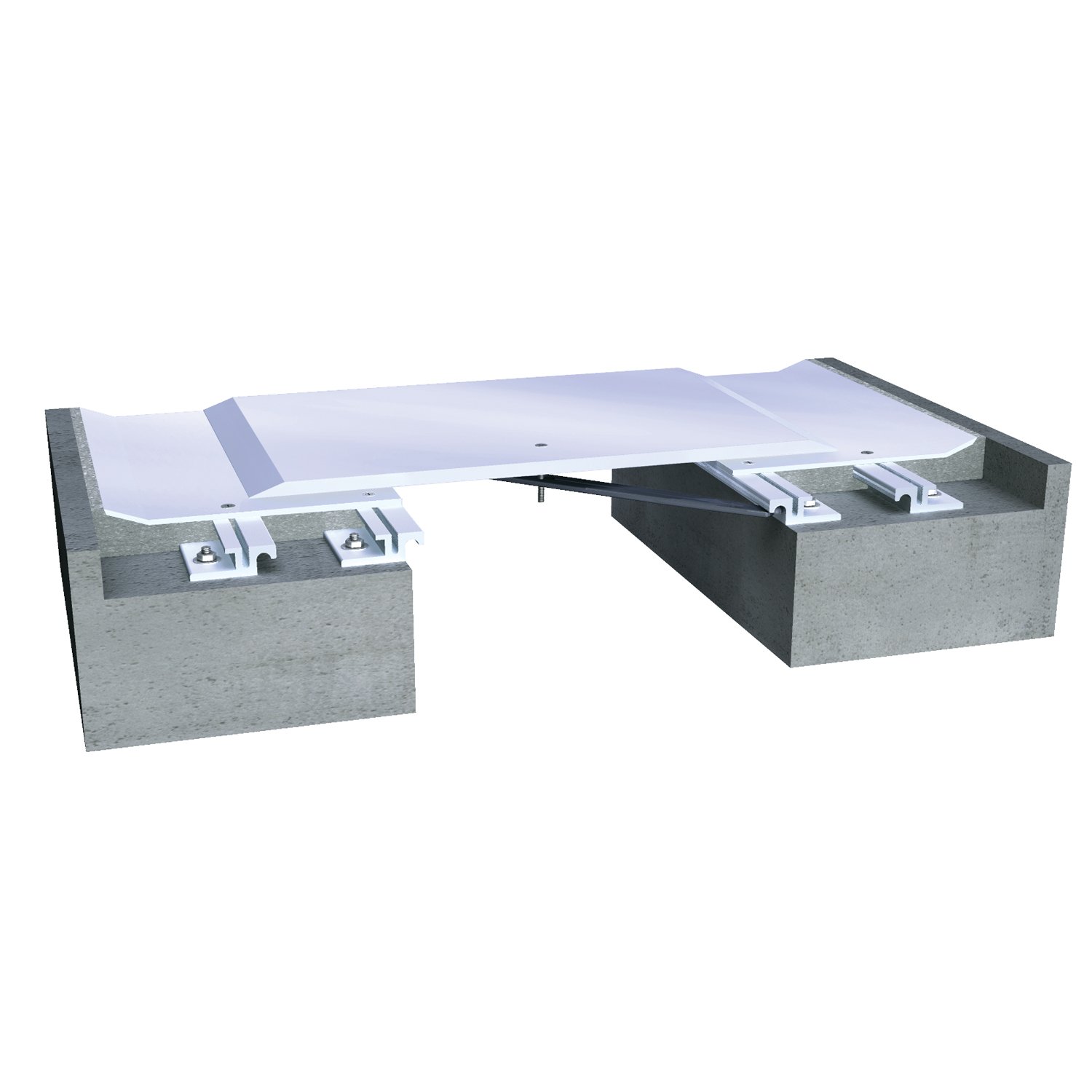

421 Series System FL/FL 4" Joint 10' (J421-A01-100)
The 421 floor expansion joint system is a highly customizable heavy duty system. This seismic capable system features a spring loaded high strength stainless steel centering bar that supports the coverplate.

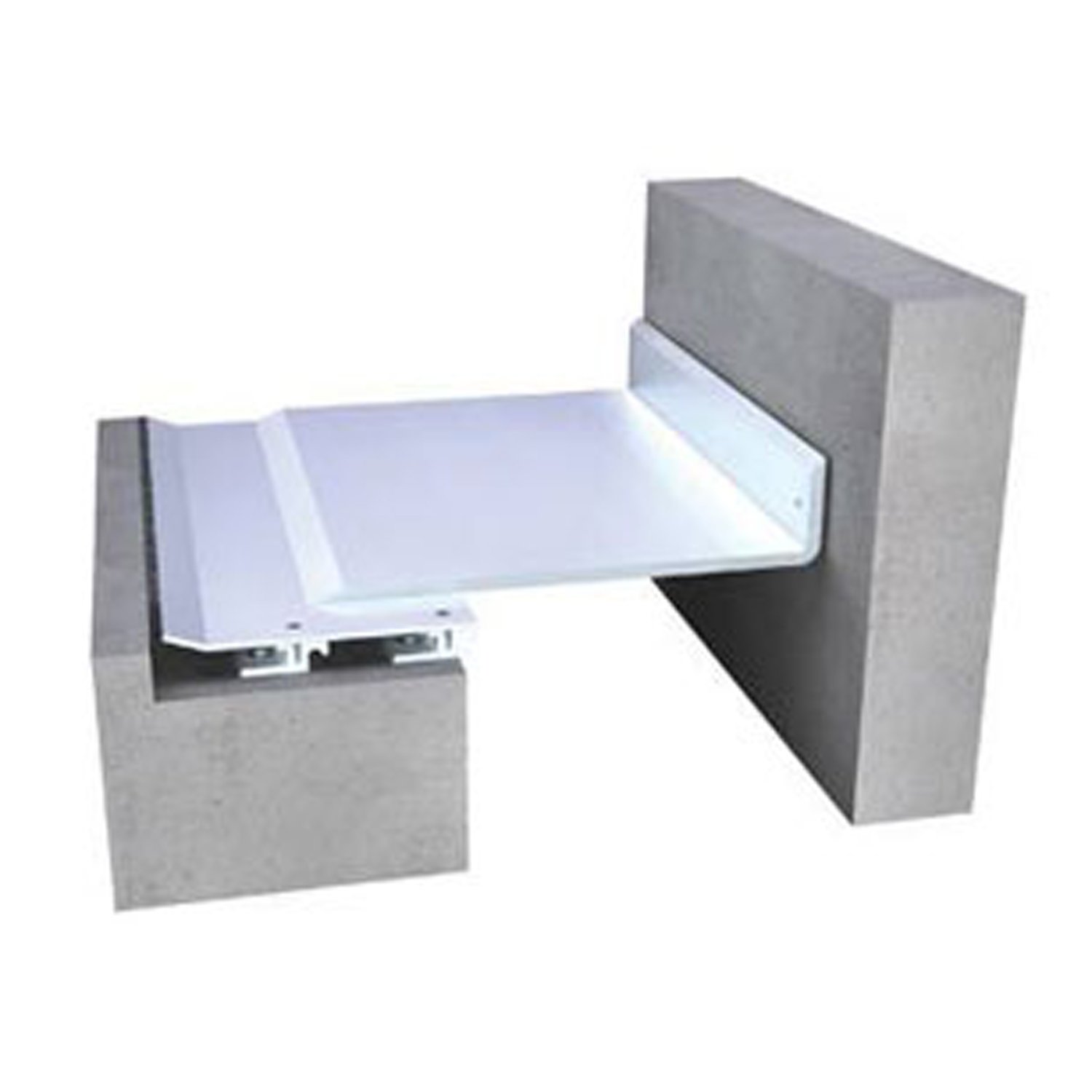

- Install Condition: Floor to Floor Floor to Wall
- Movement: +/- 50%
- Joint width: 4"-10"
- Loading Capability: Heavy Duty
- Optional EPDM
- Optional fire rated
- For extra wide joint widths
- 421 Series - All aluminum components for the most cost effective system
