430 Series - Recessed Mount

Mounting Position

Joint Opening (Imperial)

Install Condition

Color Palette

Application
Interior
Cover Type
Floor
Movement
Seismic = 50%+- (100% total)
Loading Class
Moderate
Floor Thickness
3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
Cover Finish
Mill Finish
Waterproofing
Optional
Fire Rating
Optional

Part Number

430 Series System FL/FL 1" Joint 10' (J430-A01-025)

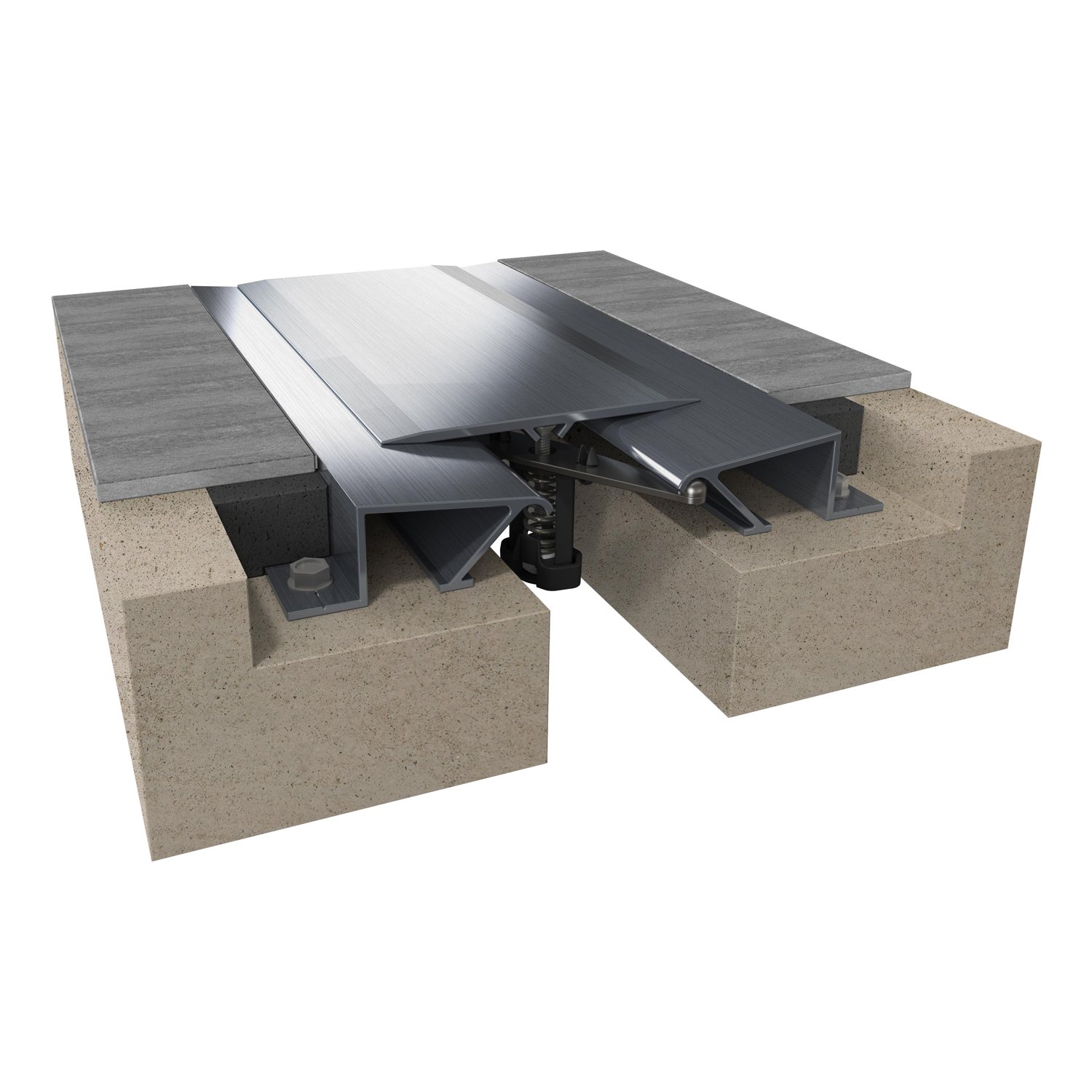

The 430 floor expansion joint cover accommodates horizontal vertical and shear seismic movement. Ideal system for use with carpet vinyl ceramic tile and other floor finishes. The 430 is engineered with hidden hardware great for public areas or spaces that need to provide tamper-proof products.

Install Condition: Floor/Floor Floor/Wall Conditions
Movement: +/- 50%
Joint width: 1"-8"
Load Capability: Moderate
Optional vapor barrier
Optional fire rated
Sheer movement unlimited
Provides a reduced sight-line
Centering bar positions plate over joint
Tapered center plate design maintains smooth transition
