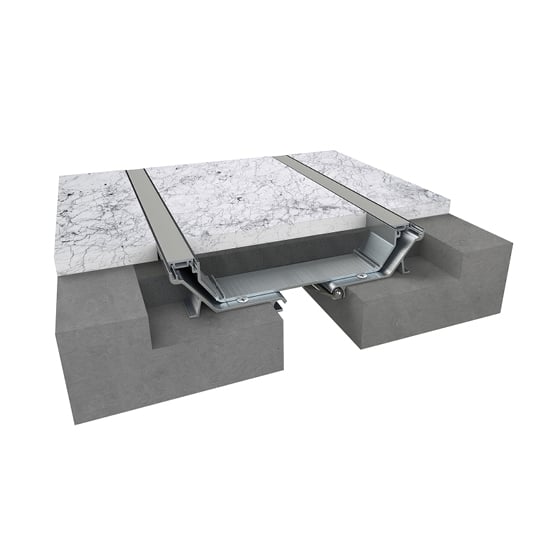

501H Series Pan System

The 501 floor expansion joint system is designed for generous day-to-day and seismic movement requirements allowing for infill of deep flooring finishes.

**Available in the Middle East market only.**

• Install Condition: Floor/Floor Floor/Wall
• Movement: +/- 50% (Modifiable up to +/- 100%)
• Joint Width: 2"-24" (50mm-600mm)
• Load Capability: Heavy Load
• Optional vapor barrier
• Optional fire rated
• 1 7/8" (46mm) deep pan ideal for floor finishes with increased depth such as marble granite limestone and paver systems.
• Pan profile provides a vertical surface to abut 20 mm thick tile against eliminating the need to bevel flooring edges.
• The combined use of center bars and tapered frame components resets the pan after seismic movement.
• Seals are flush with flooring easy to clean and prevent dirt and water traps.
• All flat seals are GREENGUARD Gold certified and provide the following qualities:
  • Seals are flush with flooring easy to clean and prevent dirt and water traps.
  • Common with most pan systems.
  • Seals provide superior thermal movement as compared to any sealant on the market and drastically reduce facility maintenance costs by eliminating backer rod and sealant systems.
  • Seal is offered in 5 standard colors to match adjacent flooring  (Custom Colors Available)

MODIFIABLE OPTIONS

• System can be modified to meet any movement needs up to 100%±
• System can be modified to meet heavy duty loading requirements.
• System can be modified for joints up to 32" (800mm)
• System can be modified to include stainless steel caps over the flat seals for rolling loads.

Attributes

• Building Application: Interior_Exterior
• Cover Type: Floor
• Joint Opening: 1"25mm - 3"75mm
• Movement: Thermal
• Mounting Position: Recessed/Flush
