601 Expansion Joint Systems
601-series-1
The 601 hinged wall expansion joint system can be infilled with adjecent architectural system to disguise the exterior expansion joint such as glazing metal panels stone brick and more.
- Install Condition: Wall/Wall
- Wall/Corner
- Movement: +/- 50%
- Joint width: 10"-30"
- Seismic-capable
- Optional fire rated
- Optional insulated vapor barrier
- Shear movement unlimited
- Ideal system for use on high-end exterior systems or conditions where the structural joint is located in a high profile position on the building veneer

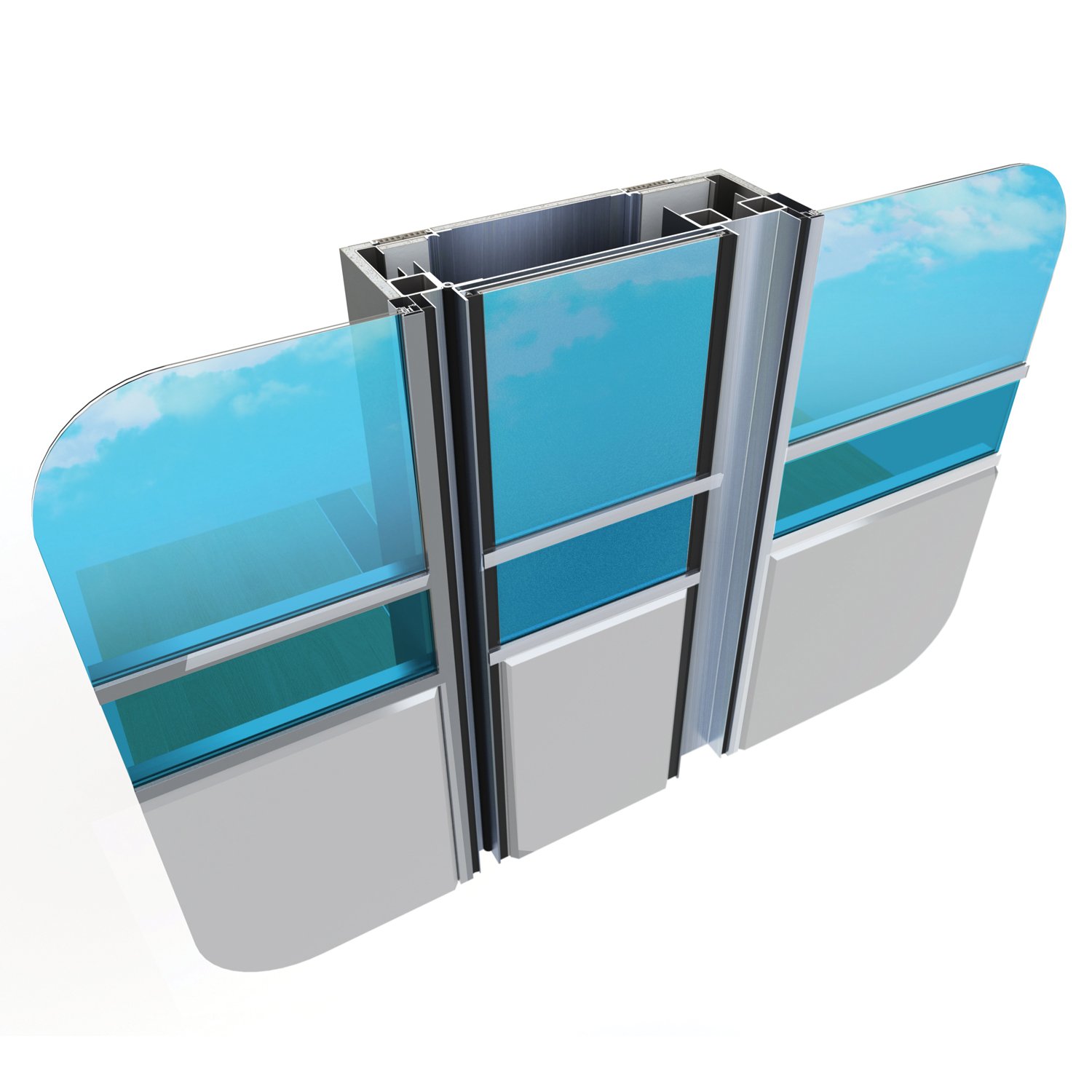

- Flush mounted exterior system reduces sightline to two reveals or approximately 1โ and 3โ dimensions
- System is seismic capable while allowing for daily thermal movement and wind sway considerations

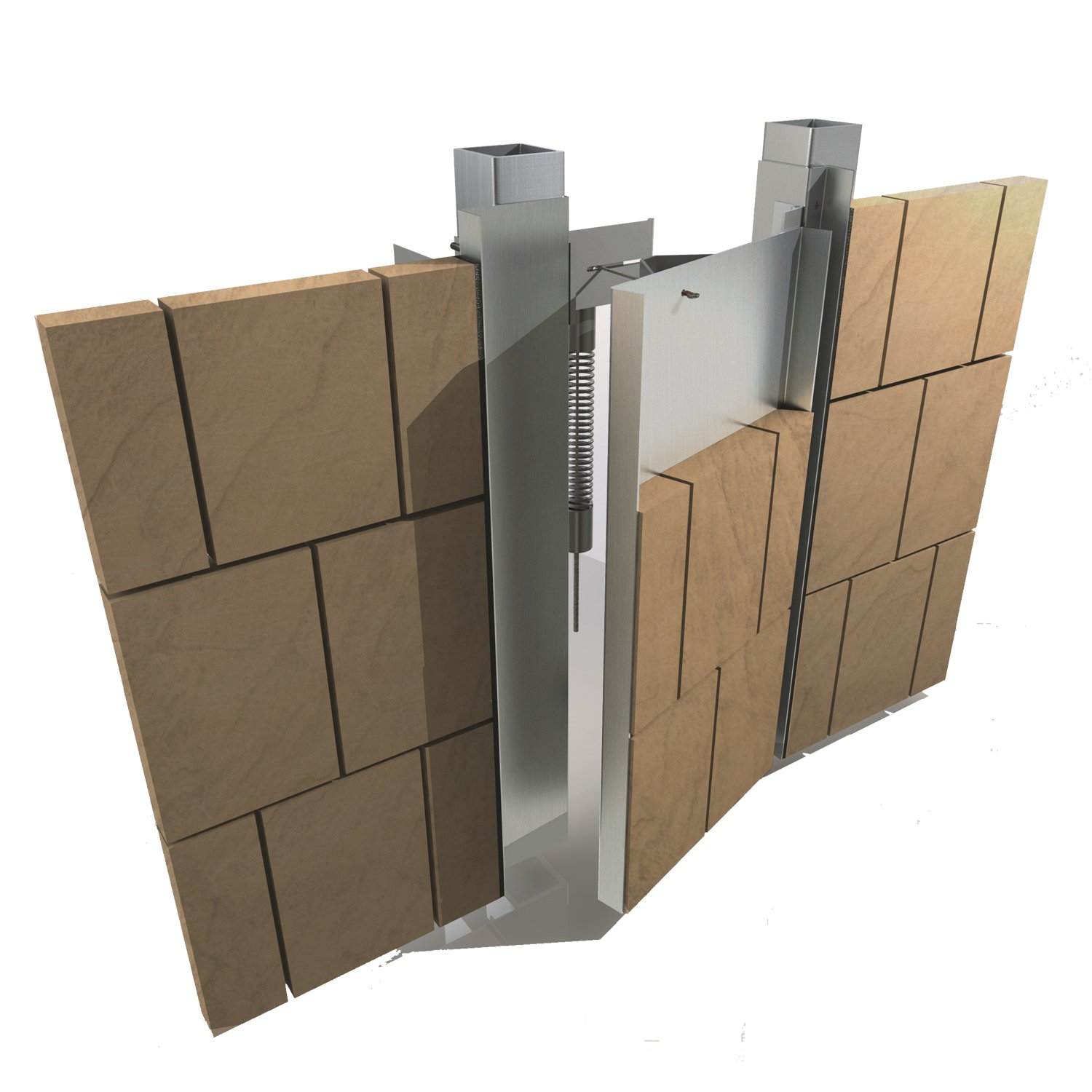

- Compression springs correctly reposition the pan to the nominal position after a system movement
- Two levels of system complexity available
- Reinforced insulated vapor systems capable of R-15 rating available
