807 Series Floor Expansion Joint Covers | J807-A01-050/10 | Inpro Corporation

^

807 Series Floor Expansion Joint Covers

  • Application
    Interior
  • Cover Type
    Floor
  • Movement
    Seismic = 50%+- (100% total)
  • Loading Class
    Standard
  • Floor Thickness
    3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
  • Cover Finish
    Mill Finish
  • Waterproofing
    No
  • Fire Rating
    Optional

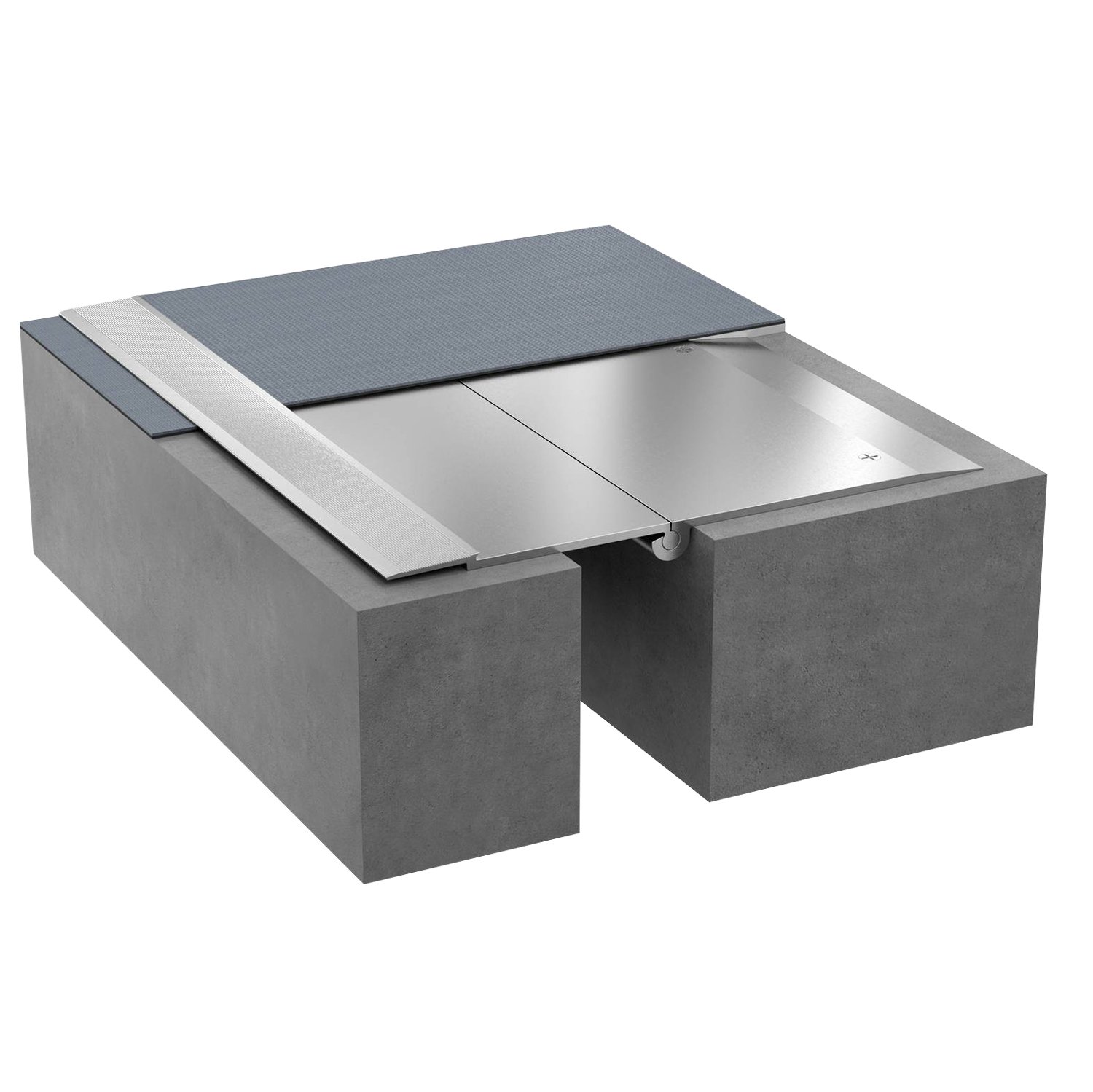

The 807 floor expansion joint system is designed to accommodate various flooring thicknesses ranging from carpet to VCT. The unique overlap design reduces system sightline on your retrofit or surface mount applications.

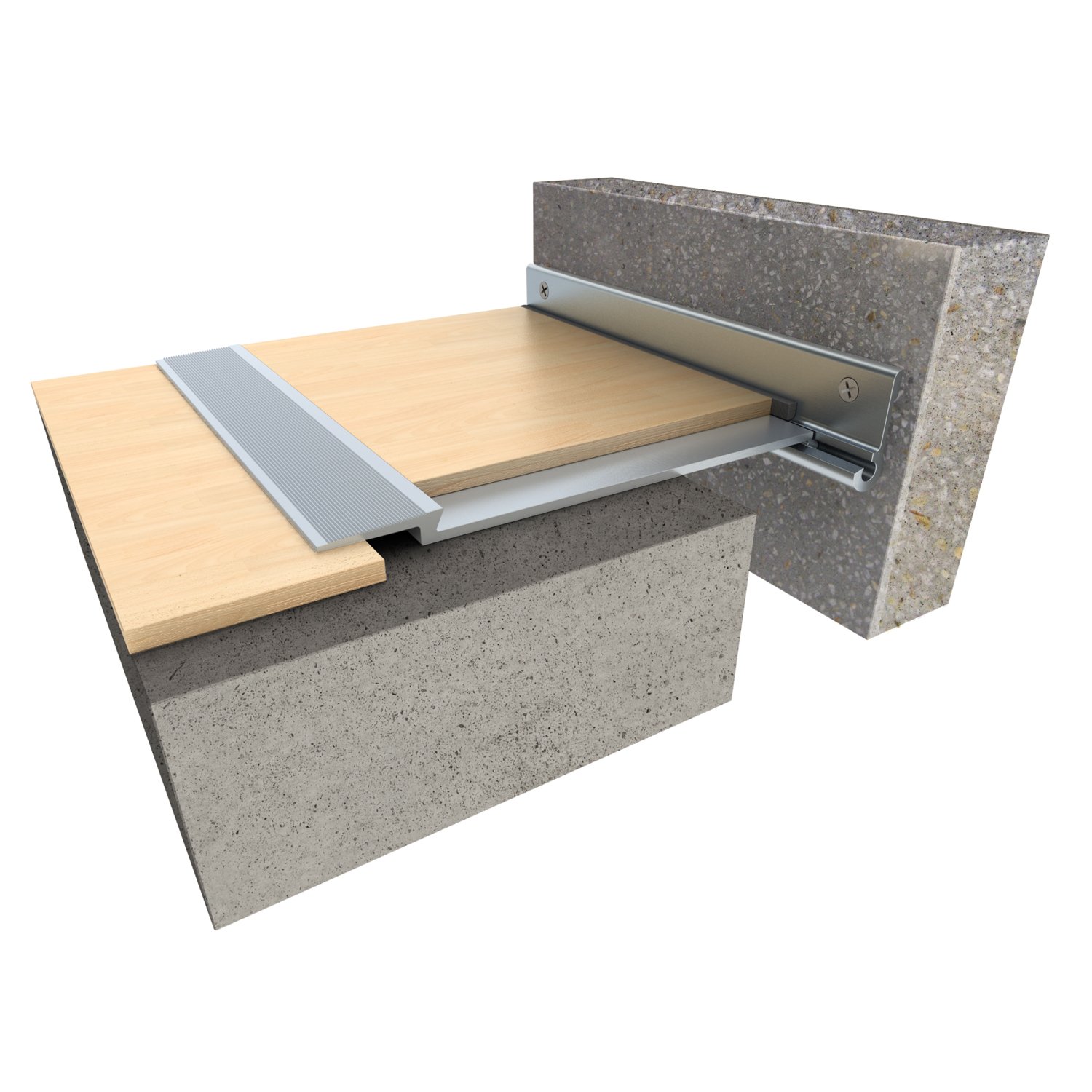

  • Install Condition: Floor/Floor Floor/Wall
  • Movement: +/- 25% to +/- 50%
  • Joint width: 2"-6"
  • Optional fire rated
  • Optional vapor barrier
  • Easy to install
  • Mill finish aluminum
  • Designed for uneven slab conditions
  • Pre-drilled counter-sunk holes for easy installation
