103 Series-VCT Expansion Joint Systems

Choose Color
  • Application
    Interior
  • Cover Type
    Floor
  • Movement
    Thermal = 25%+- (50% total)
  • Loading Class
    Standard
  • Floor Thickness
    1/8" [3mm] Thick or less (ie.- resilient/LVS)
  • Cover Finish
    Mill Finish
  • Waterproofing
    No
  • Fire Rating
    Optional

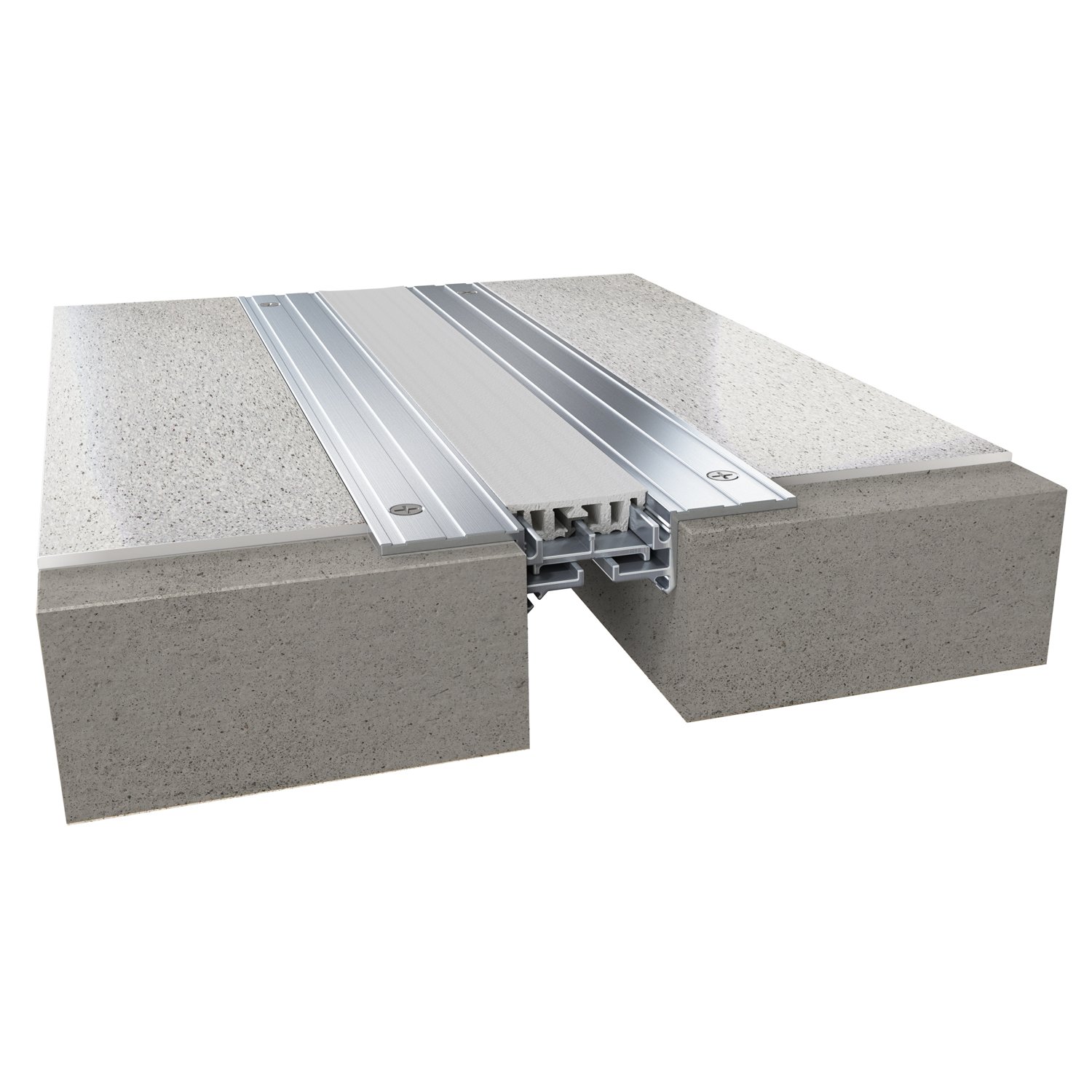

103 Series System FL/FL 1" Joint 10' (J103-A01-025)

The 103 floor expansion joint system is designed for 1/8" (3mm) flooring. The attention to detail creates a smooth transition over your building's expansion joint without requiring a large blockout in the substrate.

  • Install Condition: Floor/Floor Floor/Wall
  • Movement: +/- 25%
  • Joint width: 1"-3"
  • Load Capability: Standard
  • Optional vapor barrier
  • Optional fire rated
  • Seals absorb limited serviceable seismic movement
  • Frames allow for a smooth transition over joint for wheeled equipment
  • Designed for 1/8" (3mm) thick flooring
  • Seamlessly integrates with the following wall and ceiling systems: 101 104 112 113 118 A07/A09
  • Easy to clean flush seals no dirt or water traps
  • Dual durometer seal provides a secure fit and optimal flexibility
  • Snap-fit design for easy on-site assembly
  • Standard loading capabilities
  • Aluminum mill finish
