104 Series Sheet Vinyl or Concrete Floor Expansion Joint Covers | J104-A01-025 | Inpro Corporation

^

104 Series Sheet Vinyl or Concrete Floor Expansion Joint Covers

Choose Color
  • Application
    Interior
  • Cover Type
    Floor
  • Movement
    Thermal = 25%+- (50% total)
  • Loading Class
    Standard
  • Floor Thickness
    0" [0mm] No finish (ie.-concrete deck)
  • Cover Finish
    Mill Finish
  • Waterproofing
    No
  • Fire Rating
    Optional

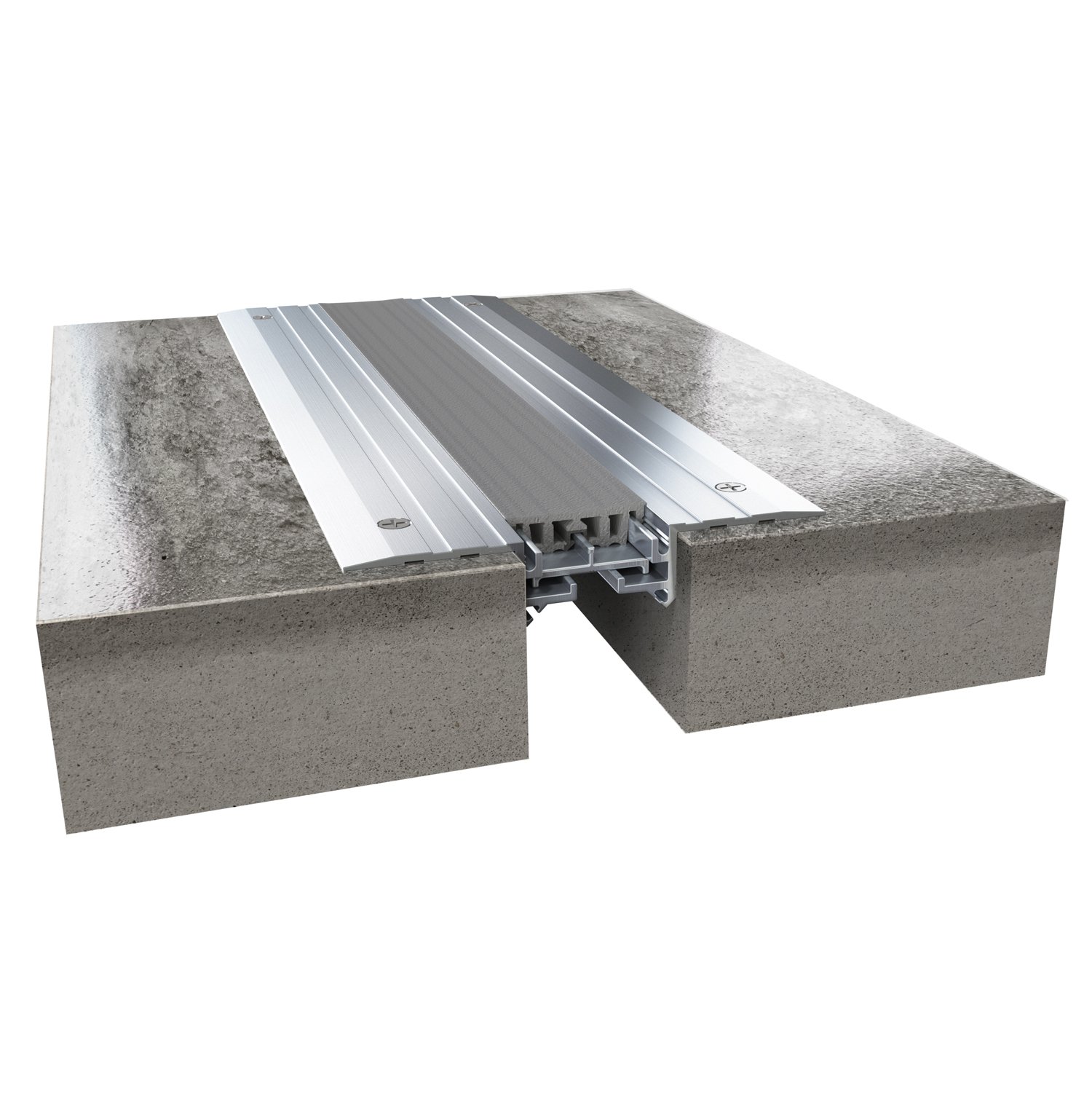

104 Series System FL/FL 1" Joint 10' (J104-A01-025)

The 104 is ideal for retrofit applications. This surface mounted floor expansion joint system works seamlessly with multiple flooring materials such as tile wood or concrete.

  • Install Condition: Floor/Floor Floor/Wall
  • Movement: +/- 25%
  • Joint width: 1"-3"
  • Load Capability: Standard
  • Optional vapor barrier
  • Optional fire rated
  • System is ideal for retrofit applications
  • Seamlessly integrates with the following wall and ceiling systems: 101 104 112 113 118 A07/A09
  • Easy to clean flush seals no dirt or water traps
  • Dual durometer seal provides a secure fit and optimal flexibility
  • Snap-fit design for easy on site assembly
  • Standard loading capabilities
  • Aluminum mill finish
