320 Series-New to Existing | J320-A01-050/25 | Inpro Corporation

320 Series-New to Existing

Mounting Position

Joint Opening (Imperial)

Install Condition

Color Palette

Application
Interior
Cover Type
Floor
Movement
Thermal = 25%+- (50% total)
Loading Class
Moderate
Floor Thickness
3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
Cover Finish
Mill Finish
Waterproofing
Optional
Fire Rating
Optional

Part Number

320 Series System FL/FL 2" Joint 10' (J320-A01-050/25)

Quantity

Please log in to get your account pricing

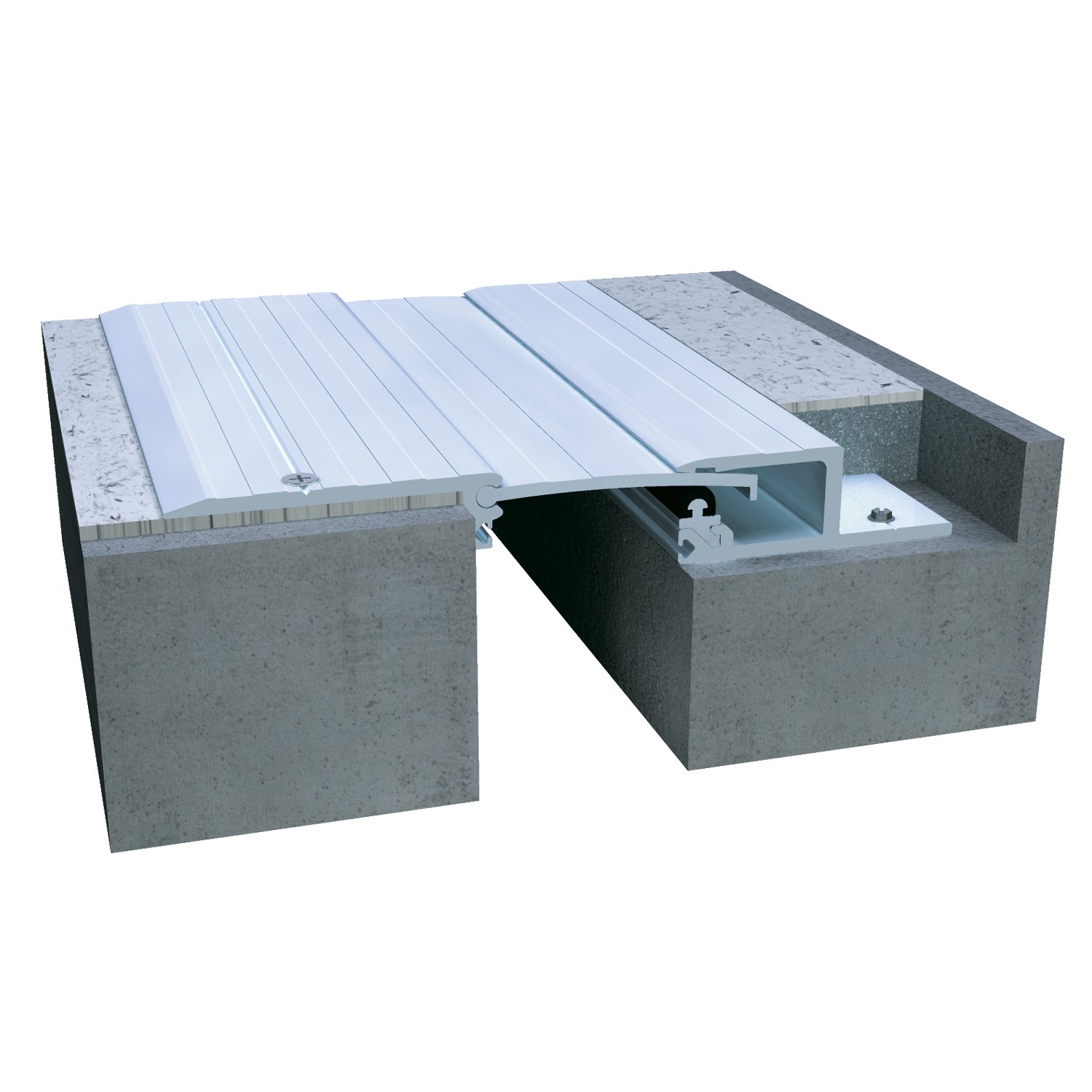

The 320 floor expansion joint system is designed for situations where the blockout occurs on one side only - retrofits renovations and additions. The glide plate allows for full seismic movement of the joint while the unique gasketed design eliminates transition rattle.

Install Condition: Floor to Floor
Movement: +/- 20%
Joint width: 1"-6"
Load Capability: Standard
Optional vapor barrier
Optional fire rated (A01)
Sheer movement unlimited
