355 Surface Mount System | J355-A07-150P | Inpro Corporation

^

355 Surface Mount System

  • Application
    Interior
  • Cover Type
    Wall
  • Movement
    Seismic = 50%+- (100% total) and High Seismic + Lateral Shear (100%+-)
  • Wall Type
    Drywall/Plasterboard
  • Ceiling Type
    Drywall/Plasterboard
  • Cover Finish
    Clear Anodized
  • Waterproofing
    Optional
  • Fire Rating
    Optional

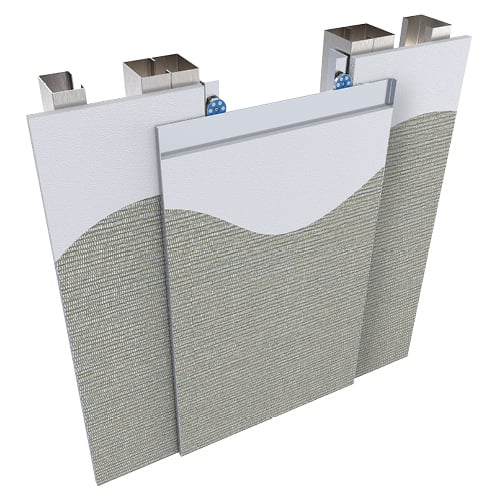

355 Surface Mnt Series 6" Jt Infillable Pan WL/WL 10'L (J355-A07-150P)

The 355 surface mount wall + ceiling expansion joint system can be customized for +/- 100% lateral shear. This pan system can be infilled to match your wall and ceiling finish while protecting your building from large thermal and seismic movements.

  • Install Condition: Wall/Wall Wall/Corner
  • Joint Width: 6”-24” (150mm-609mm)
  • Pan and frame wings can be anodized or pre-primed for painting in the field
  • No exposed hardware for security and cleaning purposes
  • US patent pending
  • Movement Magnets allow room for generous daily movement without detaching from the coverplate
  • Allows for Pan Infill System accepts many wall/ceiling finishes such as:
    Gypsum Board (plasterboard)
    Pre-primed metal faced panels
    Ceramic tile
    Solid surface
  • Minimal Sightline Integrates into desired design finish
  • System width minimized to reduce impact
  • The 355 is a surface mounted system. View the 353 for the recess mounted system.
