501R Shallow Pan System

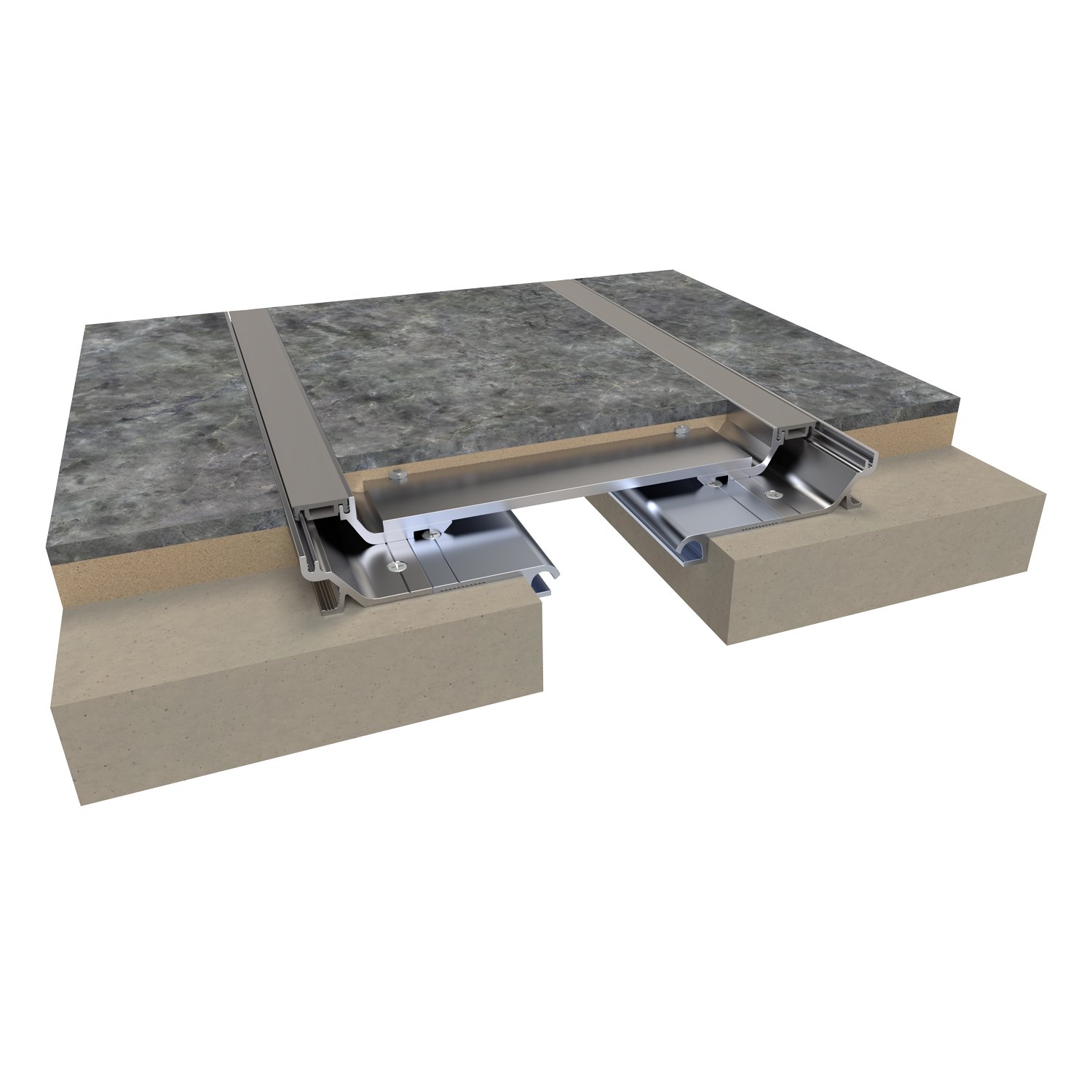

A pan system with narrow sightlines that minimize aesthetic disruption to flooring finishes. A 5/8” (16mm) deep pan that is ideal for shallow flooring finishes.

• Floor to Floor/ Floor to Wall
• Movement: +/- 50% movement
• Joint Width: 4"-24" (100mm-600mm)
• Optional Vapor Barrier
• Optional Fire Rated
• 5/8" (16mm) deep pan ideal for floor finishes with shallow depth such as VCT sheet vinyl carpet and other ceramic tile.
• Shallow blockout depth to help prevent interference with slab rebar system also compatible with topping slab construction.
• Designed for generous thermal and seismic movement requirements.
• Pan profile provides a vertical surface to abut 3/8" (9 mm) thick flooring against eliminating the need to bevel flooring edges.
• The combined use of centerbars and tapered frame components resets the pan after seismic movement.
• System can be modified to meet any movement needs up to 100%.
• Pan assembly can be modified to meet heavier loading capabilities.
• System can be modified to include stainless steel caps over the flat seals for rolling loads.
• All flat seals are GREENGUARD Gold certified and provide the following qualities:
  • Seals are flush with flooring easy to clean and prevent dirt and water traps common with most pan systems.
  • Seals provide superior thermal movement as compared to any sealant on the market and drastically reduce facility maintenance costs by eliminating backer rod and sealant systems.
  • Seal is offered in 5 standard colors to match adjacent flooring (Custom Colors Available)
