516 Series Single Sightline for Carpet Floor Expansion Joint Covers
- ApplicationInterior
- Cover TypeFloor
- MovementSeismic = 50%+- (100% total)
- Loading ClassModerate
- Floor Thickness3/8" [9.5mm] Thick or less (ie.- ceramic tile/LVT plank/carpet)
- Cover FinishMill Finish
- WaterproofingOptional
- Fire RatingOptional

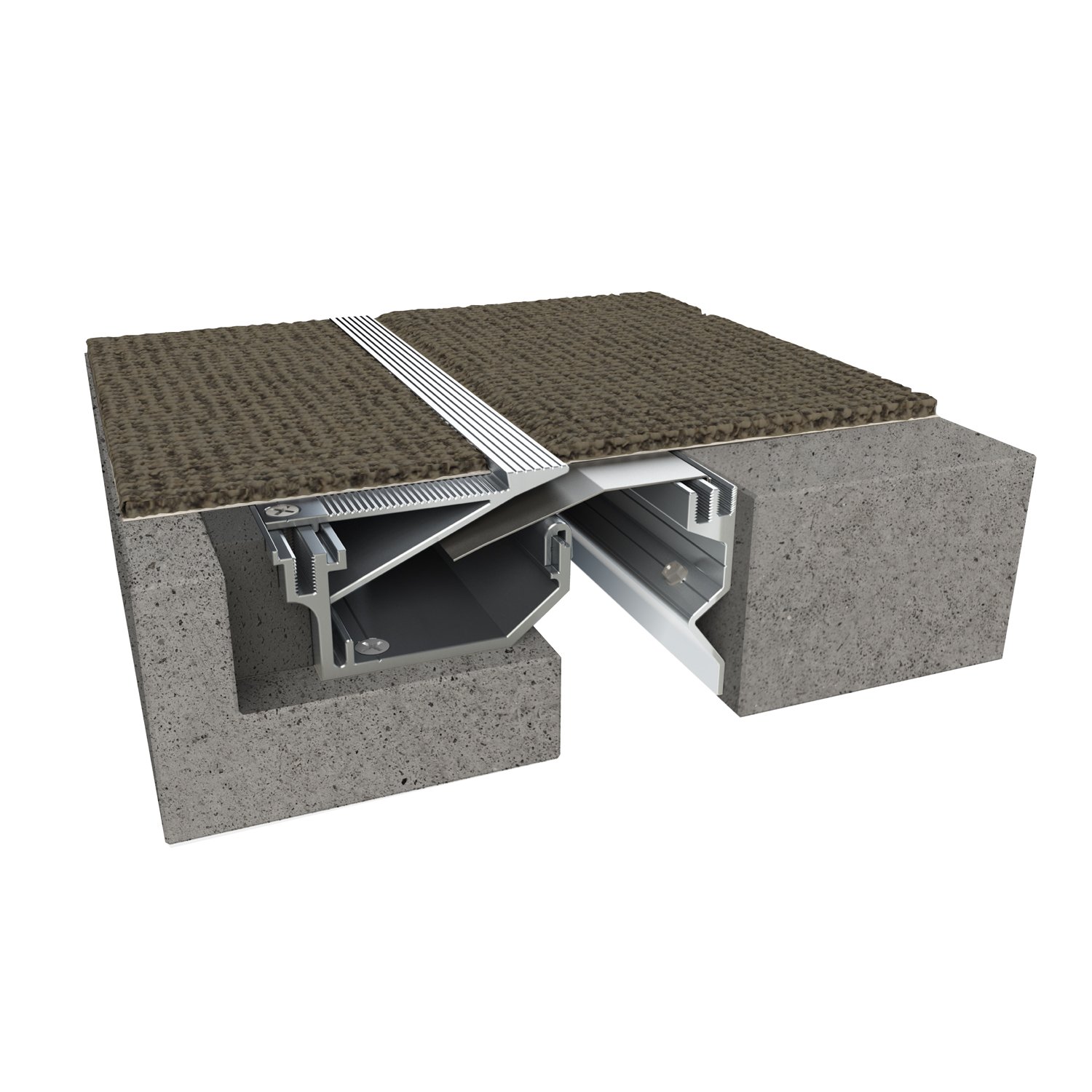

516 Series System FL/FL 4" Joint 10' (J516-A01-100)
Floor to Floor Floor to Wall Movement: +- 50% +- 100% Joint width: 2"-3" Optional vapor barrier Optional fire rated Sheer movement unlimited
- Install Condition: Floor/Floor Floor/Wall
- Movement: +/- 50% +/- 100%
- Joint width: 2"-3"
- Load Capability: Moderate
- Optional vapor barrier
- Optional fire rated
- Sheer movement unlimited
- System reduces joint widths of up to 4" (100mm) down to a narrow sightline of only 1" (25mm)
- Specially designed for continuous flooring types such as carpet and vinyl sheet
- Stainless steel leaf spring supports heavy pedestrian loads and secures flooring in place during movement
- Single narrow sightline preferred by interior designers
- ADA compliant
- Adjustable frame height allows for various carpet pile heights
- Perfect for both renovation and new construction projects
- System requires blockout only on one side simplifying construction coordination between trades
