797 Series Floor Expansion Joint System

  • Application
    Exterior and Interior
  • Cover Type
    Floor
  • Movement
    Seismic = 50%+- (100% total) and High Seismic + Lateral Shear (100%+-)
  • Loading Class
    Heavy Duty
  • Floor Thickness
    0" [0mm] No finish (ie.-concrete deck)
  • Cover Finish
    Mill Finish
  • Waterproofing
    Optional
  • Fire Rating
    Optional
797 Series FL/FL Crowned Plate 4" Jt 50% Mvmnt 10'L Galv (J797-G01-100)

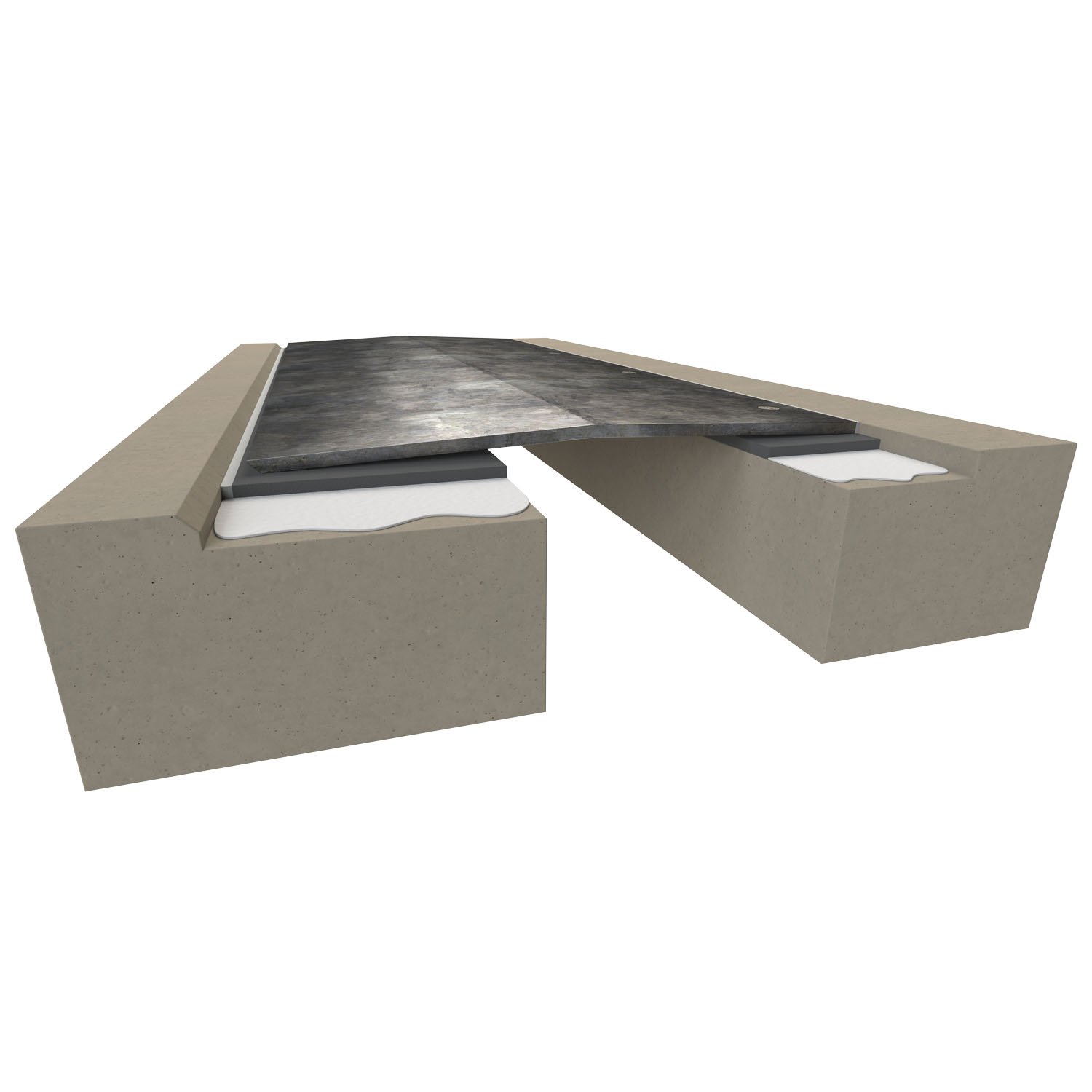

The 797 surface mount floor expansion joint system is designed to meet the needs of structures open to the elements and vehicular loading. This heavy duty system uses a thick high strength plate and crowned profile for increased load resistance.

  • Floor to Floor
  • Movement: +/- 50%
  • Joint width: 6"-24"
  • Optional Vapor Barrier
  • Optional Fire Rated
  • ADA Compliant and allows for a smooth transition over the joint
  • Load Capability: Galvanized A36 steel and optional Stainless Steel plates meets stringent loading needs
  • Plates are compliant with ADA requirements and allows for a smooth transition over the joint.
  • Galvanized A36 steel and optional Stainless Steel plates meets stringent loading needs.
  • Shallow blockout ensures no interference with the rebar / cabling structure.
  • Slip resistant finish in optimal on cover plates.
  • High durometer EPDM pads absorb traffic vibrations and act as a noise dampening device.
  • 60 mil. reinforced vapor barrier is optional for this system
  • SS epoxy drop-in hardware
  • Movement options for up to ±100% available.
