797L Series - Lateral Shear System

  • Application
    Exterior and Interior
  • Cover Type
    Floor
  • Movement
    Seismic = 50%+- (100% total) and High Seismic + Lateral Shear (100%+-)
  • Loading Class
    Heavy Duty
  • Floor Thickness
    0" [0mm] No finish (ie.-concrete deck)
  • Cover Finish
    Mill Finish
  • Waterproofing
    Optional
  • Fire Rating
    Optional

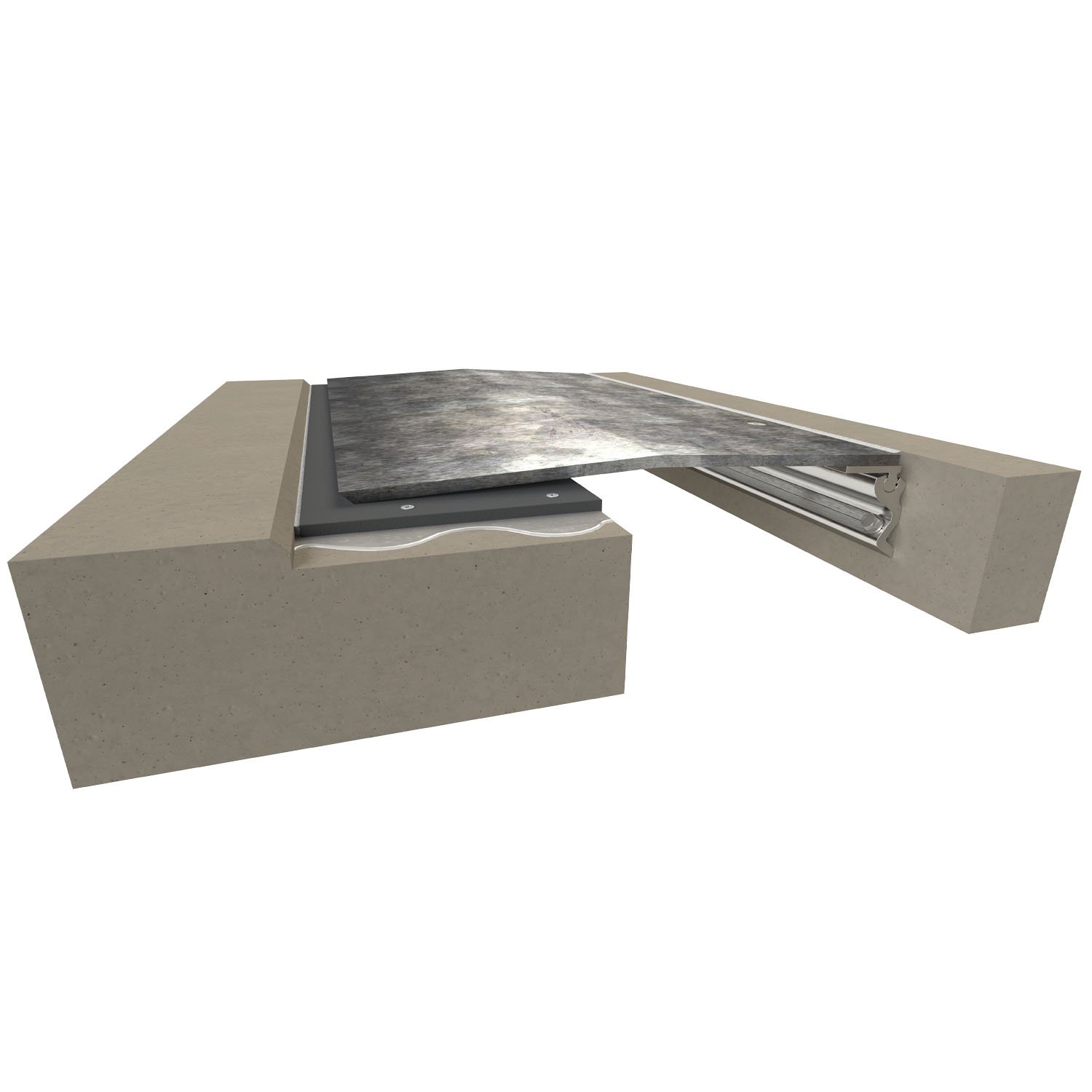

797Lateral FL/FL Crowned Plate 4" Jt 50% Mvt LP 10'L Galv (J797L-G01-100LP)

A heavy duty expansion joint cover plate system capable of withstanding vehicular traffic and +/- 100% lateral shear movement. The unique crowned profile is designed for increased load resistance and a longer lifecycle.

  • Floor to Floor/ Floor to Wall
  • Movement: +/- 100% lateral shear
  • Joint Width: 6”-24” (150mm-600mm)
  • Optional Vapor Barrier
  • Optional Fire Rated
  • Seismic cover plate system designed to meet the needs of structures open to the elements and vehicular loading.
  • Materials handling equipment
  • Forklifts/Scissorlifts/Cherrypickers
  • High frequency (low speed) entry points for vehicular traffic
  • Class 1-4 DOT classified heavy duty vehicles
  • Galvanized A36 steel standard. Stainless Steel and Aluminum options available.
  • Plates are compliant with ADA requirements and allows for a smooth transition over the joint.
  • Shallow blockout ensures no interference with the rebar / cabling structure.
  • High durometer EPDM pads absorb traffic vibrations and act as a noise dampening device.
