AR Series Seal Expansion Joint Systems | JAR-100S | Inpro Corporation

^

AR Series Seal Expansion Joint Systems

  • Application
    Exterior
  • Cover Type
    Roof/Deck and Floor
  • Movement
    Seismic = 50%+- (100% total)
  • Loading Class
    Heavy Duty
  • Floor Thickness
    0" [0mm] No finish (ie.-concrete deck)
  • Waterproofing
    Yes and Optional and No
  • Fire Rating
    Optional and 3 and 2 and 1
Quantity

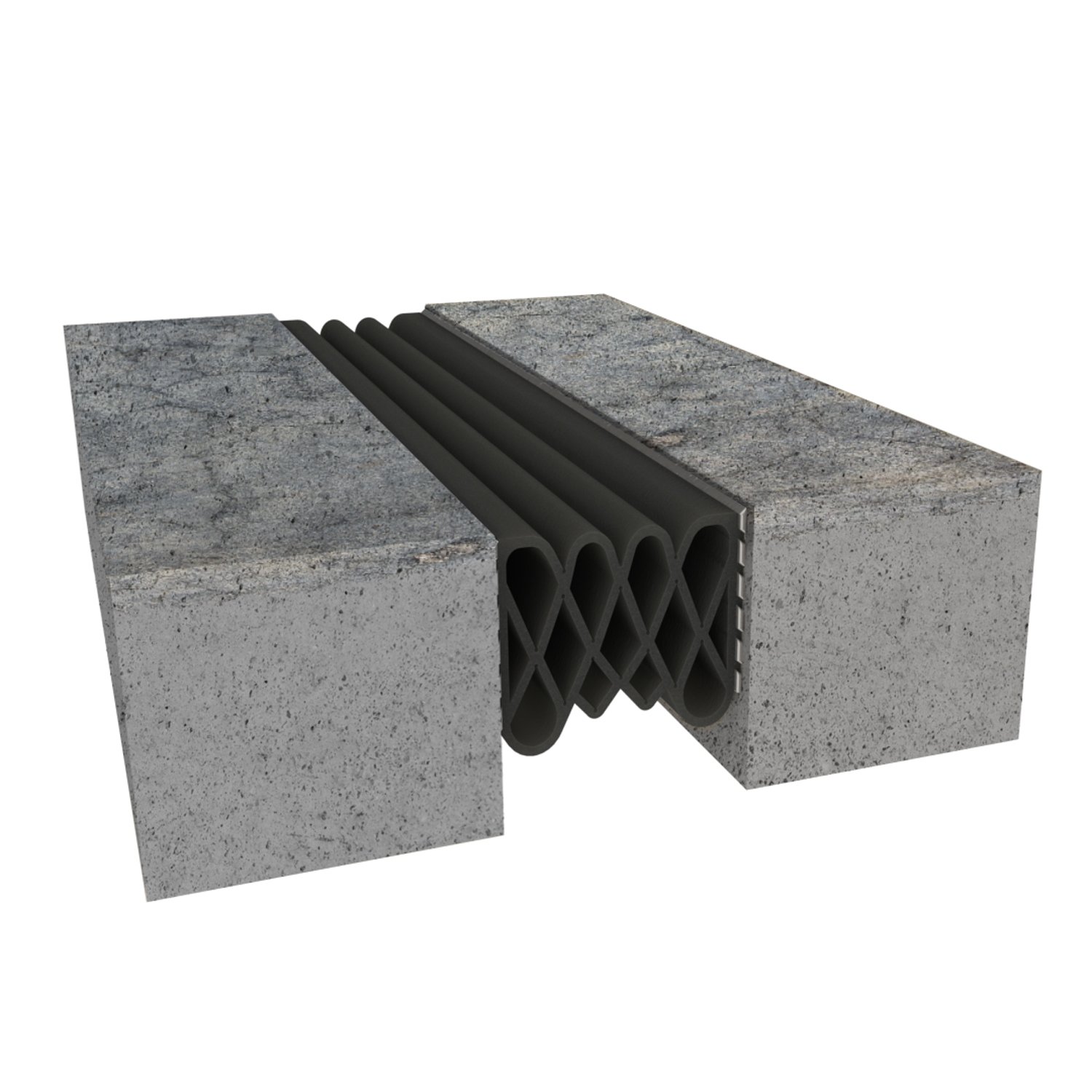

The industry unique design of the AR compression seal creates crisp sight lines and incorporates ribs on the sides to aid in pooling epoxy and adding surface area for increased adhesion during installation. Comprised of Santoprene TPV Rubber this system has superior movement while being highly resistant to UV degradation extreme temperatures and chemicals.

  • Install Condition: Horizontal and Vertical applications where watertight conditions
  • are required
  • Movement: +/- 50%
  • Joint width: 1"-4"
  • Optional fire rated
  • Heavy pedestrian/moderate vehicular loading
  • Heat weldable for watertight seams
  • Standard Color: Black
  • For premium and custom colors minimum run lengths and increased price point apply.
