787 Series Floor Expansion Joint Covers
- ApplicationExterior
- Cover TypeRoof/Deck and Floor
- MovementSeismic = 50%+- (100% total)
- Loading ClassHeavy Duty
- Floor Thickness0" [0mm] No finish (ie.-concrete deck)
- Cover FinishMill Finish
- WaterproofingYes
- Fire RatingOptional

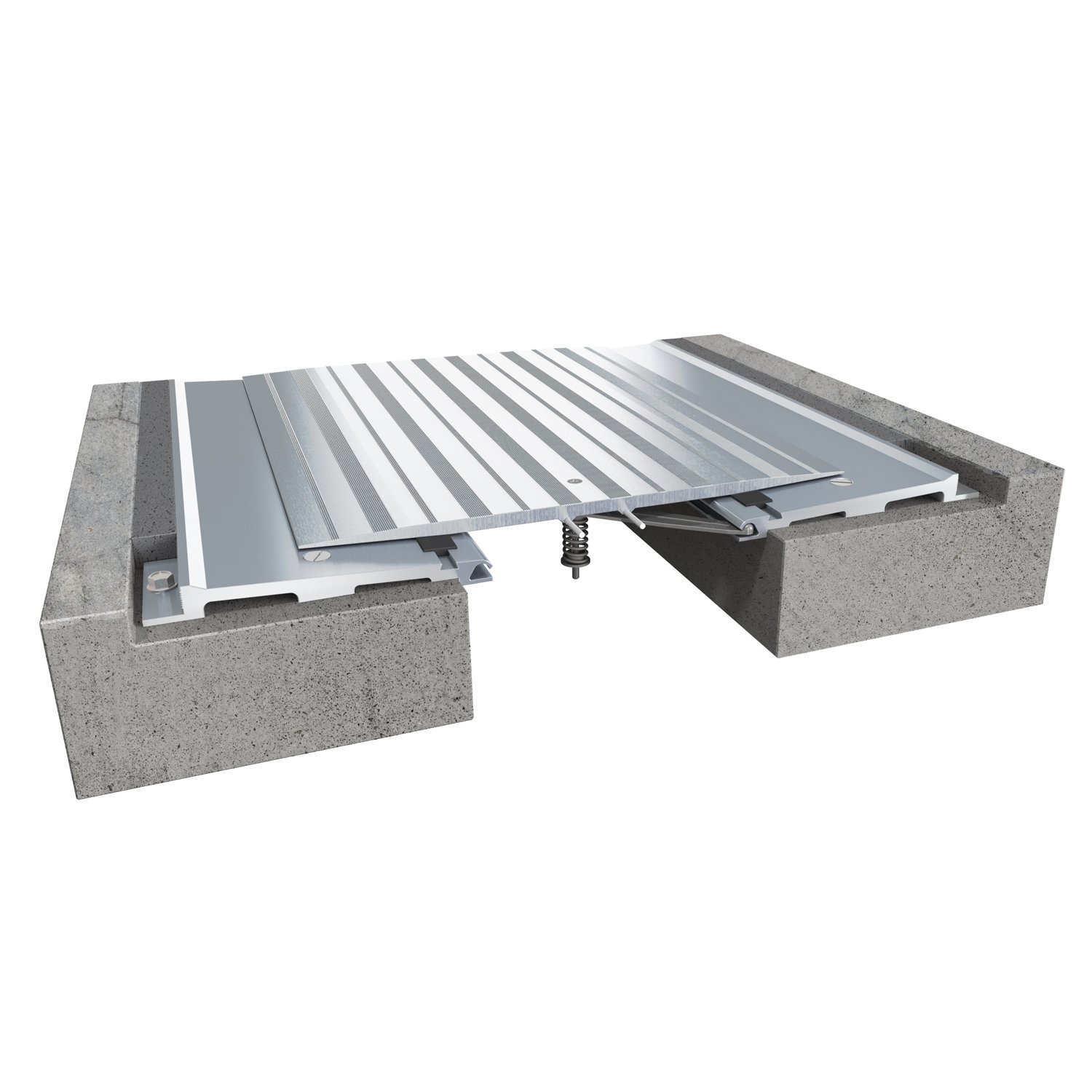

787 Series System FL/FL 4" Jt. 10'L 50% Mvt wRVB (J787-A01-100)
The 787 floor expansion joint system is seismic capable and designed to meet the needs of open structures and vehicular loading. Our design drastically reduces the lateral impact to the joint which can lead to premature system fatigue.
- Install Condition: Floor/Floor Floor/Wall
- Movement: +/- 50%
- Joint width: 4"-12"
- Load Capability: Heavy Duty
- Optional Vapor Barrier
- Optional Fire Rated
- Optional Header Nosing
- Tapered plate and frames provide a seamless ADA compliant design that constantly levels itself and maintains a flush condition
- Serrated cover plate for added slip resistance
- Integral high durometer seal deters water from entering the system and acts as a noise dampening device
