Wall Protection
Selection Guide
| Palladium® Rigid Sheet Wall Protection | Printed Palladium® Rigid Sheet Wall Protection | Aspex® Printed Wall Protection | |
|---|---|---|---|
| Description | Superior impact resistance to keep your walls safe from damage. Chemical resistance for cleaning. | Standard designs printed on Palladium® Rigid Sheet. | Use custom images for total design freedom while protecting your walls from damage. |
| Typical Applications | High traffic areas | Areas that require more aesthetics than defense | Large feature walls, headwalls, corridors |
| Cost Index* | $ | $$ | $$$ |
| Color | Solid Colors (HCA Standard Only), Metallics, Woodgrains | Standard Patterns | Custom Imagery + Standard Patterns |
| Thickness |
Standard: .040", .060"
Also Available: .030", .080"
| 0.40" | .040" |
| Dimensions |
Standard: 4' x 8' sheet

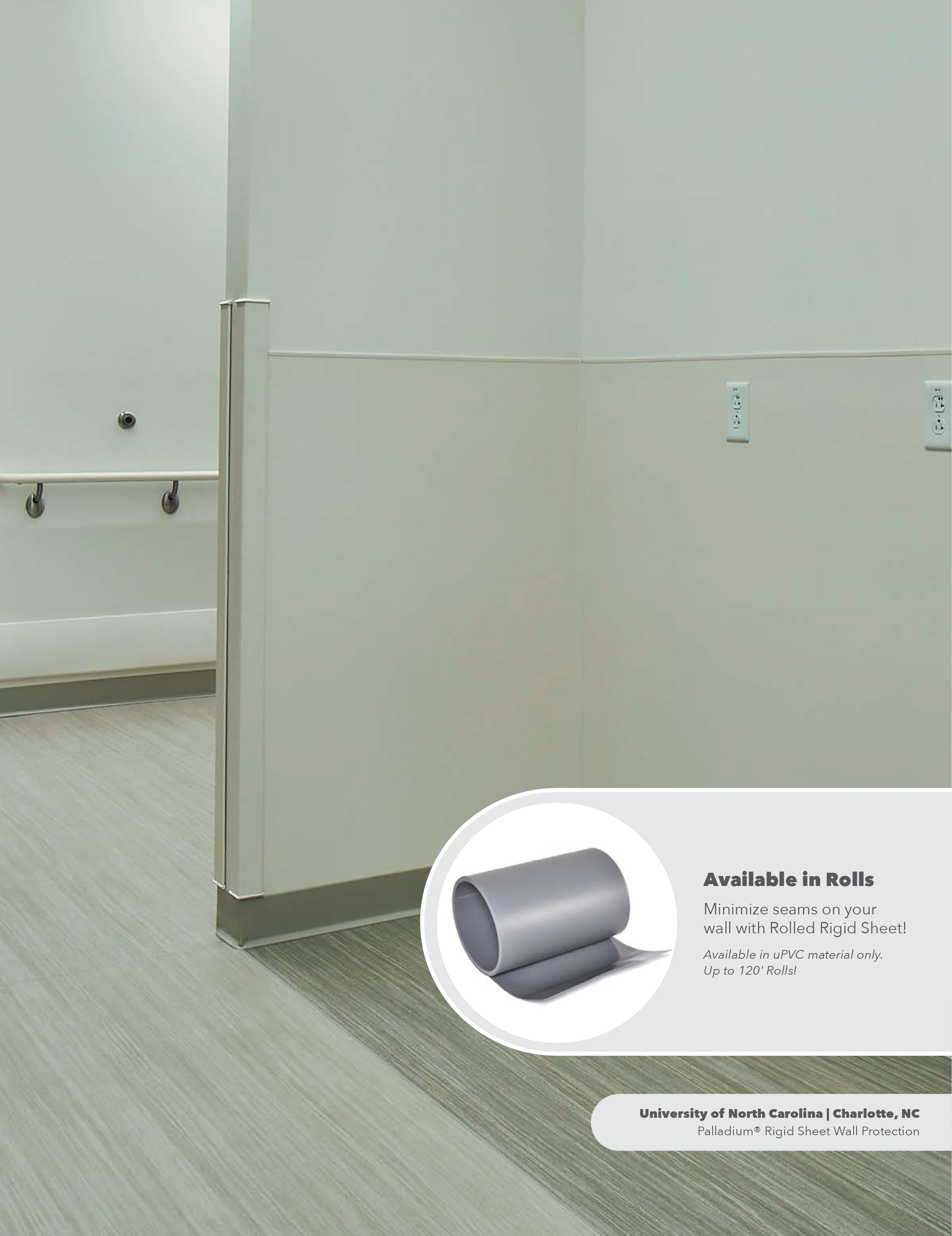

Custom heights + lengths, rolls up to 120' also available
| 4' x 8' | 4' x 10' sheets |
| Fire Safety | Class A Fire Rated | Class A Fire Rated | Class A rated, ASTM E-84; NFPA 286 |
| Installation |
Inpro Bond Trowel-on, Inpro Bond Roll-on Adhesive, 3M Fastbond 30 Contact Adhesive
|
Inpro Bond Trowel-on,
Inpro Bond Roll-on Adhesive + 3M Fastbond 30
|
Inpro Bond Trowel-on Adhesive,
Inpro Bond Roll-on Adhesive
|

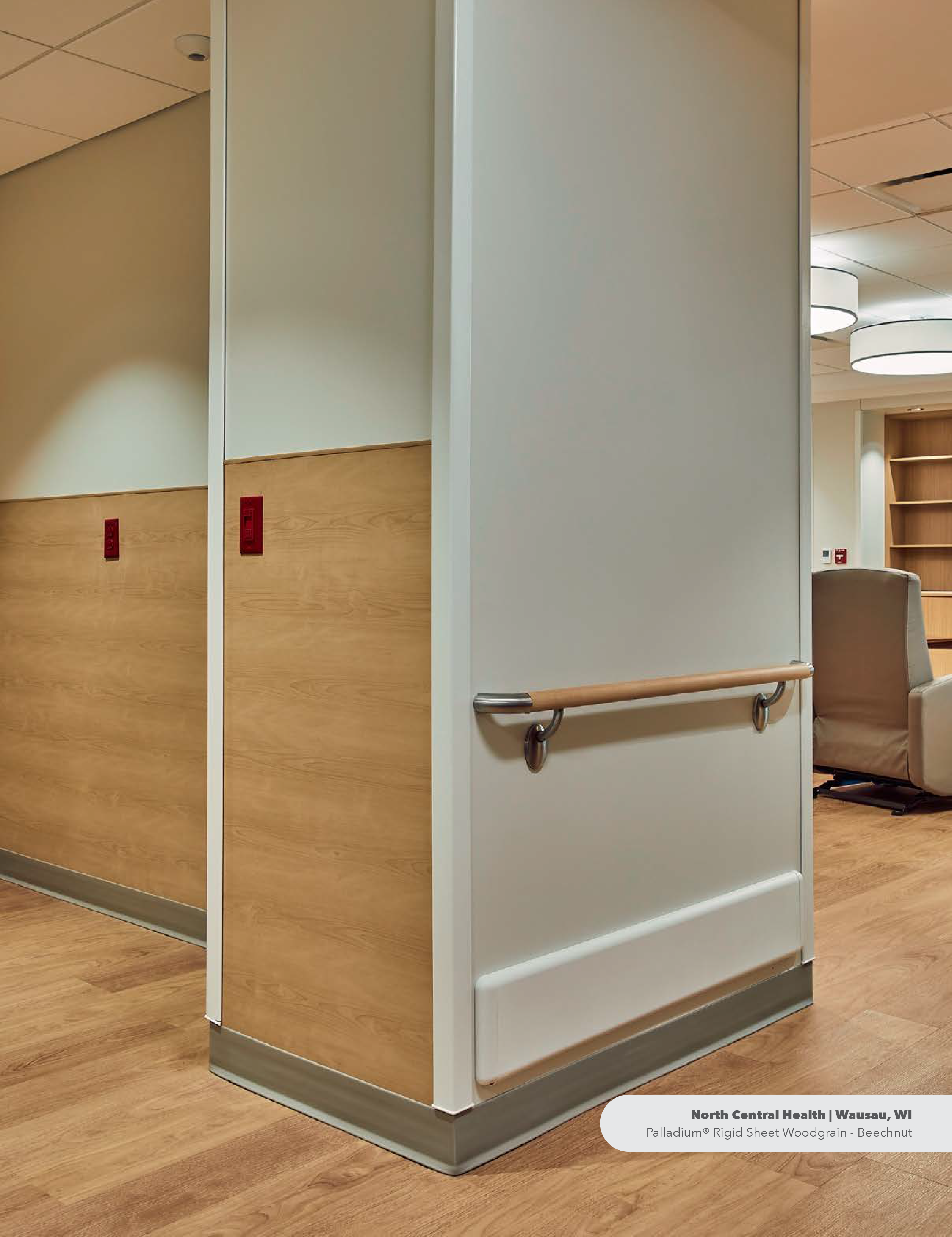

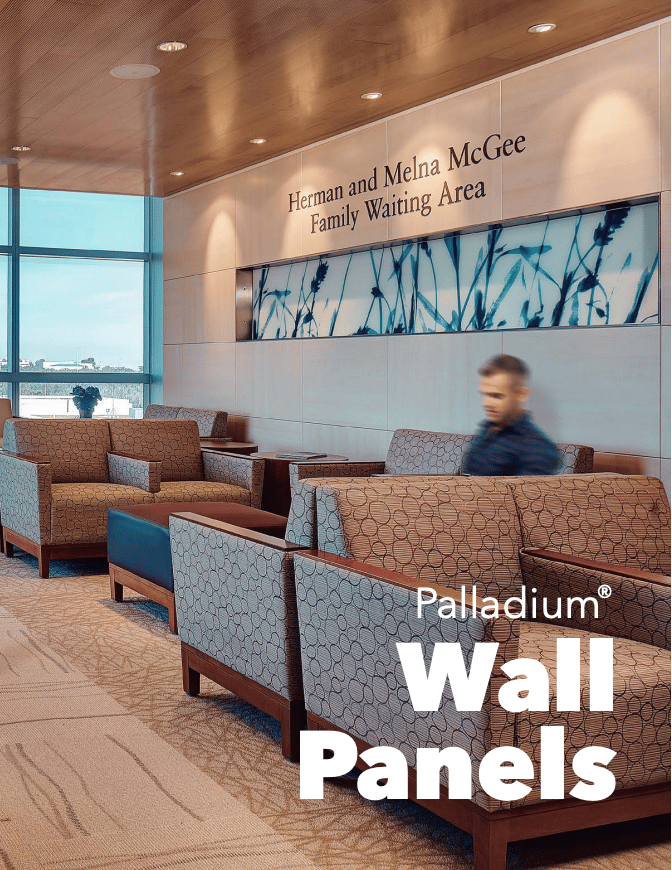

Palladium® Rigid Sheet Wall Protection
Solid Colors
Not just taking an impact. Making an impact.
Give your walls a fighting chance with Palladium® Rigid Sheet Wall Protection. Palladium provides superior impact resistance to keep your walls safe from damage, so you can say goodbye to endless repairs!
10 26 00 | Wall + Door Protection
Palladium®
Metallics
The look of real metal, without the cost.
Palladium®
Woodgrains
Wood patterns with the durability of rigid sheet.
Palladium®

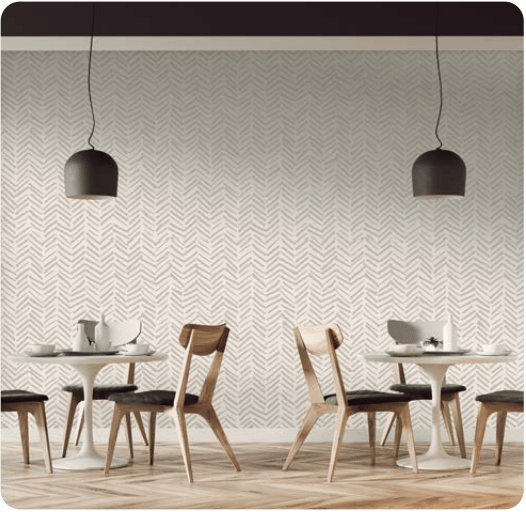

Patterns
Protection that pops.
Introducing Palladium® Patterns. Bold new designs printed on our Rigid Sheet Vinyl Wall Protection.
Give your walls personality without sacrificing their strength against commercial demands.
NEW! Legacy
NEW! Linea
NEW! Loom
Patterns Composition
*Geo is a large scale pattern. Please request sample for full effect.
Palladium® Patterns Ordering Timeline
Looking for something outside of our standard Palladium® Patterns offering? Work with us to create something custom. Below is an outline of the order process from start to finish.
New Custom Palladium Pattern
(Total Estimated Design Time: 2-4 months)
Don’t see a pattern that fits your needs? Let’s create something new.
Color or Scale Change on Standard Printed Palladium Pattern
(Total Estimated Design Time: 1-2 months)
Want to change the color or scale of one of our standard Palladium® Patterns?
Process Details
- Contact your Inpro Sales Team to schedule a Design Vision meeting during your Design Development Stage.
During this meeting please be prepared to share examples of patterns and specific colors. (Paint/Paton Numbers). Color will very during the manufacturing process. Inpro will determine the lead time to receive the first PDF rendering of the pattern and colorway. Lead time will be based on current workload. - Inpro will e-mail PDF rendering.
- Contact/Meet with Inpro to confirm approval or make any additional changes.
- Inpro will create a submittal sample for the final approval. Lead time: 10-15 business days.
Please note that once your pattern + color is approved, this product will have a 17-22 business day lead time.
*These are project timeline estimates only. Lead times may very during peek work seasons

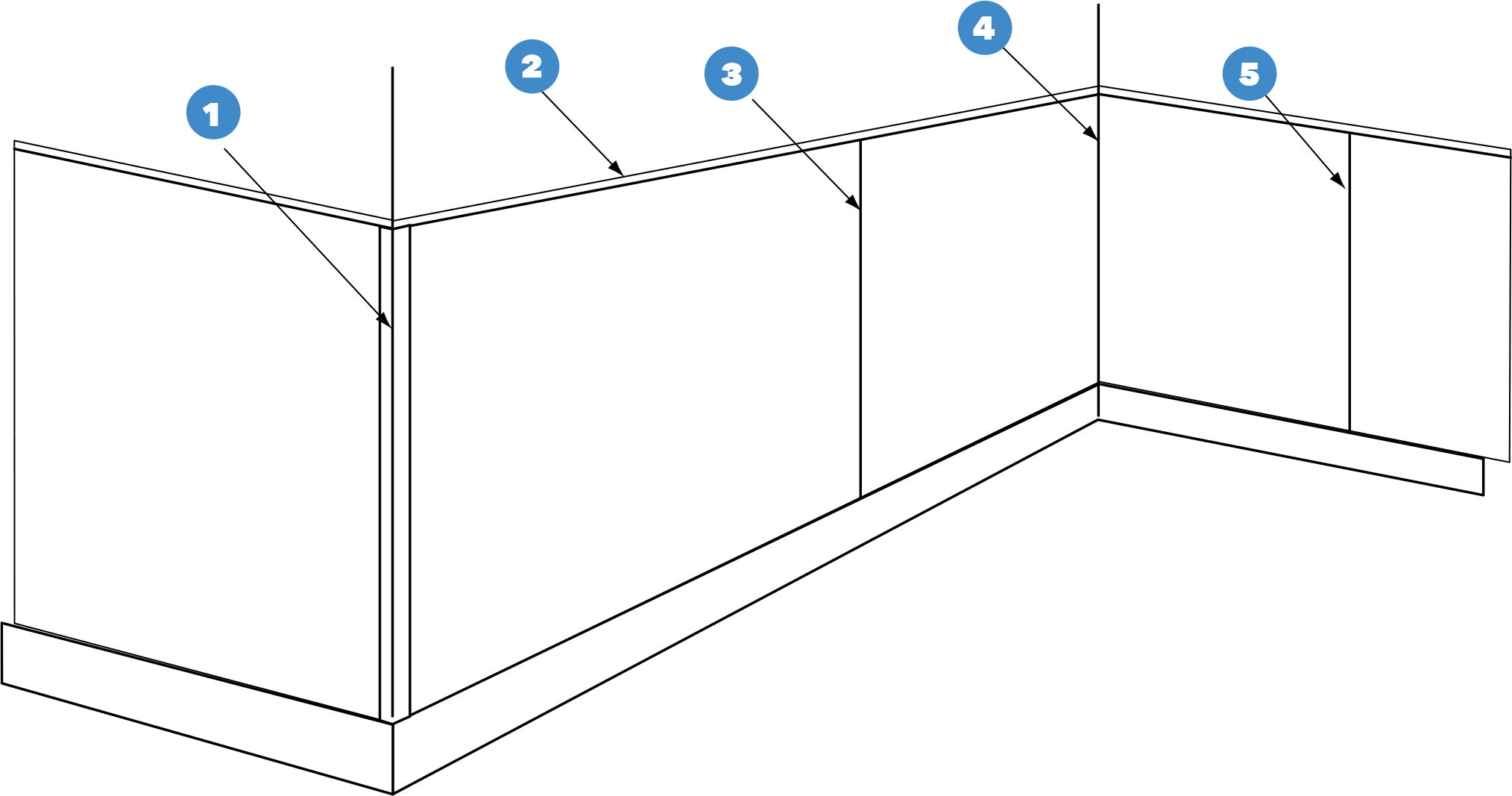

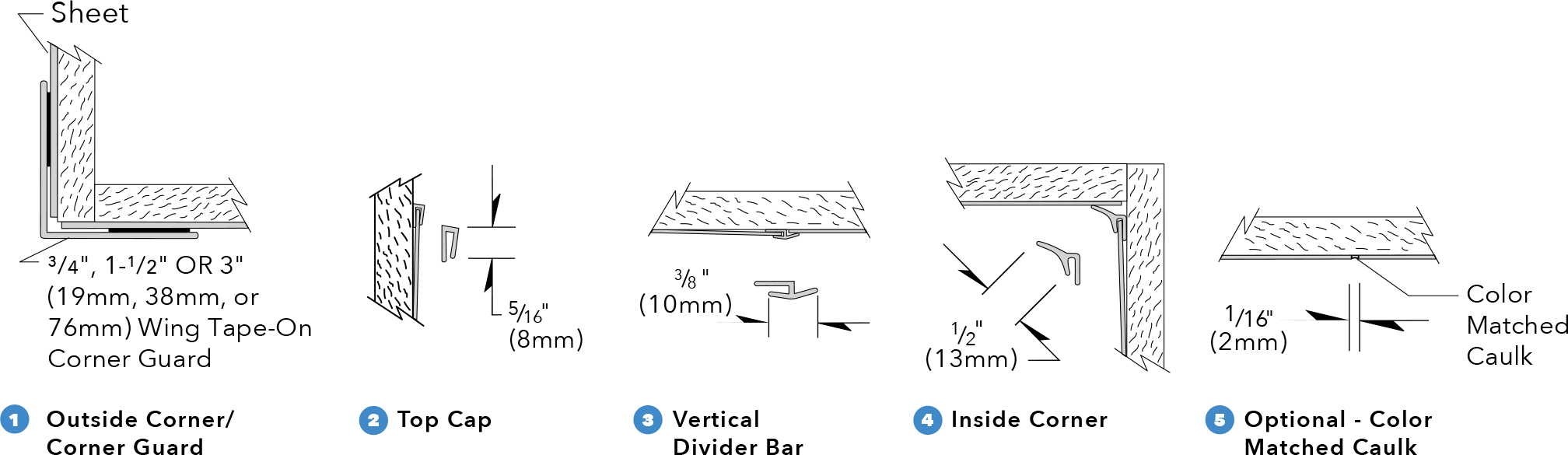

Trim Options
We recommend a seam at every 12' with our Palladium® sheet products for expansion and contraction.
Solid Color Trim
Part Numbers:
407 – Top Cap, 8' length
408 – Vertical Divider Bar, 8' length
409 – Inside Corner, 8' length
Stainless Steel Trim
Part Numbers:
DW-SSTC08 – Top Cap, 8' length
DW-SSDB08 – Vertical Divider Bar, 8' length
NOTE: 10' trim also available.
Aluminum Trim
Part Numbers:
407A-CL – Top Cap, 8' length
408A-CL – Vertical Divider Bar, 8' length
409A-CL – Inside Corner, 8' length
420A-CL – Outside Corner, 8' length
NOTE: Available in Clear Anodized Satin Finish. 10' trim also available.
Faux Metal Trim
Part Numbers:
407M-0369 – Top Cap, 8' length
408M-0369 – Vertical Divider Bar, 8' length
409M-0369 – Inside Corner, 8' length
NOTE: Available in Bright Silver Rigid Vinyl only. 10' trim also available.
Color-Matched Caulk
Also available: 585 - Color-Matched Caulk

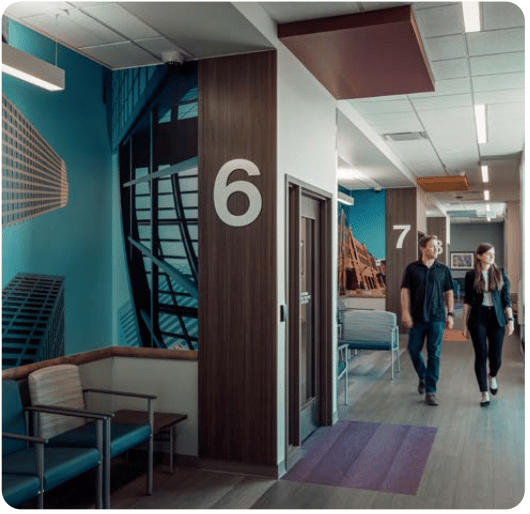

Aspex®
Printed Wall Protection
Not just a wall. A canvas.
Your image. Your branding. Your statement. Aspex® Printed Wall Protection gives you total design freedom while protecting your walls from the toughest damage at the same time. Be the composer of your canvas, the director of your design. Create a work of art that stands the test of time. Images speak louder than words.
What will your walls say?

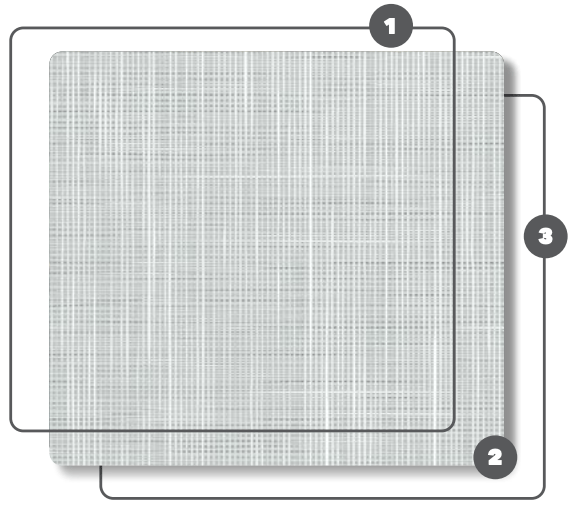

Aspex® Composition
This .040" (1mm) layer offers protection for both your wall and your image. It includes a matte finish to reduce glare.
Subsurface printed on back side of PETG.
Provides an opaque layer between the wall and printed graphics.
Aspex® Ordering Timeline
Aspex® Printed Wall Protection is custom created to meet the unique needs of your project.
Below is an outline of the order process from start to finish.
New Custom Aspex® Pattern or Photographic Image
(Total Estimated Design Time: 2-4 months)
Want to use a crisp photo or make adjustments to one of our standard patterns? Let’s create something new.
Color or Scale change on Standard Aspex® Pattern
(Total Estimated Design Time: 1-2 months)
Want to change the color or scale of one of our standard Aspex® Patterns?
Custom Image Selection
If you’re in need of photographic images please follow the instructions within our Getty and Shutterstock Image Selection Guides. By following these simple steps, you can use the images you want without worrying about image fees. If you want to use custom images, please reach out to your Inpro sales team. Image fees will apply.
Process Details
- Contact your Inpro Sales Team to schedule a Design Vision meeting during your Design Development Stage. During this meeting please be prepared to share examples of patterns, specific colors (paint/paton numbers). Colors will very during the manufacturing process. Please reference our Getty Images® and Shutterstock® Image Selection Guide attached when looking for photographic images. Inpro will determine the lead time to receive the first PDF rendering of the pattern/colorway. Lead time will be based on current workload.
- Inpro will e-mail PDF rendering.
- Contact/Meet with Inpro to confirm approval or make any additional changes.
- Inpro will create a submittal sample for the final approval. Lead time: 10-15 business days.
Please note that once your pattern + color is approved, this product will have a 17-22 business day lead time.
*These are project timeline estimates only. Lead times may very during peek work seasons

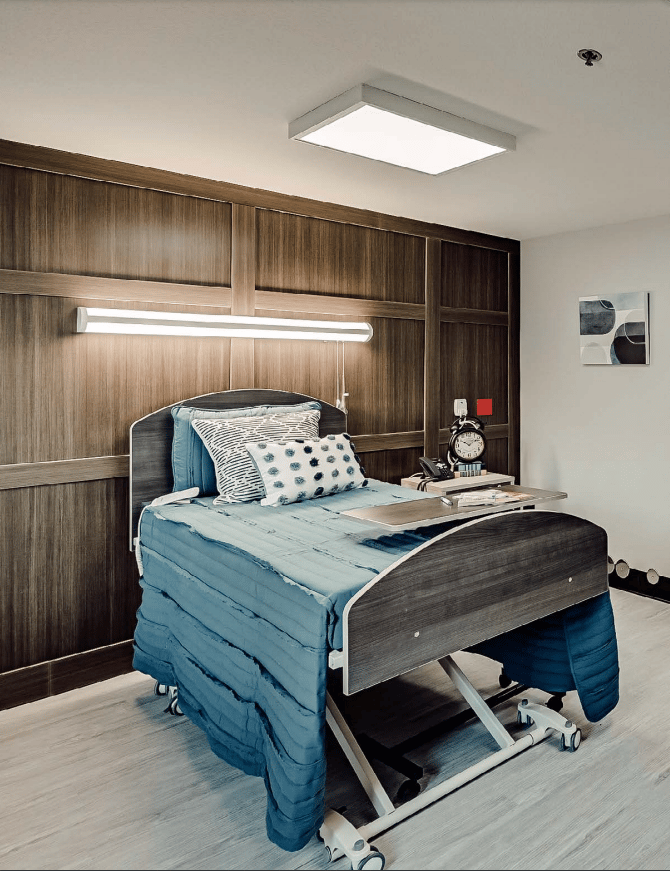

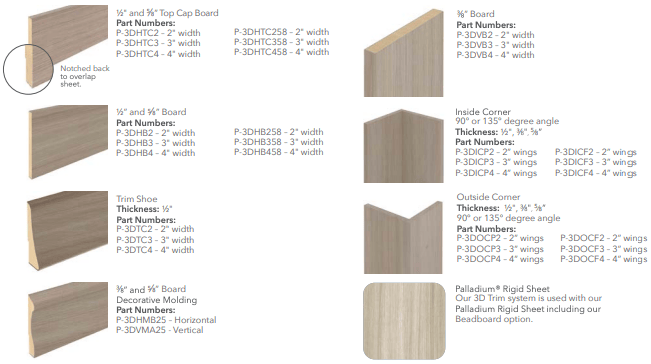

Palladium®
3D Trim System
Give your walls dimension.
Mix and match Palladium® 3D Trim to create endless style options with maximum protection. Wrapped in our Palladium® Rigid Sheet Vinyl Wall Protection, 3D Trim's easy-to-install design ensures no bowing, chipping, or scratching.
Standard 8' (2.44m) lengths available in 2" (.05m), 3" (.08m) and 4" (.10m) standard widths.
NOTE: Add suffix "W" for Woodgrains. *Custom sizes available.
Features
- Standard thicknesses: 3/8" (9.5mm) vertical and ½" (12.7mm) horizontal, 5/8" thick also available
- More durable than wood and laminates, but just as easy to cut
- Product provided in 8' (2.44 m) lengths with finished ends
- Class A Fire Rating
- Variety of colors and patterns
- Adhesive mount
- Pre-matched fill-stick available to fill finish nail holes (Woodgrains only)
- Fully wrapped on all sides
wall panels with
trim system
46" (1.12m) x 118" (3m)
Cut to size in field
Specialty Wall Protection
Back-of-House areas need high-impact protection from carts, dollies, equipment and other moving traffic.
These products are specifically designed to absorb and deflect against anything that gets thrown at them.

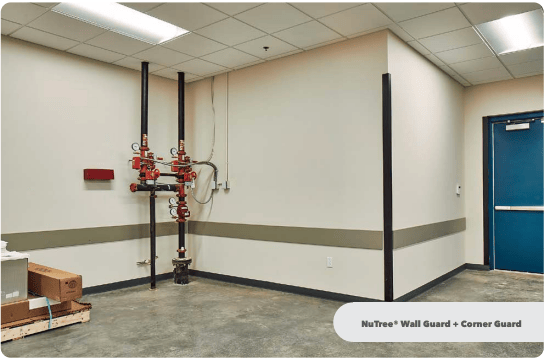

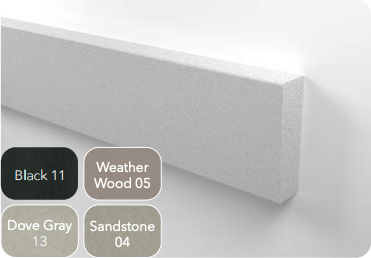

NuTree® Wall Protection
NuTree® Wall Protection provides a high-impact, heavy-duty solution
for those areas in your building that take the toughest abuse.
- 3/16" (4.8mm) thick sheet in 4' (1.22m) x 8' (2.45m)
- Manufactured from High Density Polyethylene (HDPE)
- Easy-to-cut and install in field
- Protects against damage caused by heavy equipment
- Great for back-of-house or maintenance areas
- Stamped to look like diamond plate without the cost of diamond plate
Stainless Steel Wall Protection
Stainless Steel Wall Protection provides durability for the walls in your facility.
- Maximum panel size: 4' (1.22m) x 10' (3.05m)
- Panels fabricated to size to reduce onsite cutting
- Butt-jointed or formed edge to provide continuous transitions
- Food-grade 304 alloy
- Type 430 available
- #4 Satin finish 18 gauge standard (also available in 14, 16 + 20 gauge)
- Diamond plate option available (butt-jointed only)
Palladium® Rigid Sheed made from 100% recycled pre-consumer content
- Manufactured with 100% first generation PVC regrind
- .060 and .080 thickness options
- Supplied in 4' x 8' sheets
- Black only
- NFPA Class A Fire Rated
- Offers the same level of protection as Palladium® Rigid Sheet at a lower price point
- Matches our standard black Palladium® Rigid Sheet and Trim Pieces
- Great for Back of House applications + areas requiring protection where design or color is irrelevant
Continuum Wall Cladding Interior Protection for the Elements
Continuum™ provides easy to work with, industrial-strength wall protection you can count on to protect the most sensitive spaces in your building. Continuum Wall Cladding easily integrates with our Continuum Base to create
a watertight transition from floor to wall.
- Panels are 4' x 8' or 4' x 10'
- Thickness: .080"
- Microvelvet texture
- Stable in temperature and moisture changing environments
- Fiberglass free, easy to cut on-site
- Easy to clean and wash down
- Excellent impact resistance
- NSF and GREENGUARD Certified
- Top Cap, Divider Bar, Inside Corner, Outside Corner trim pieces available
- Two-part urethane available for watertight installations

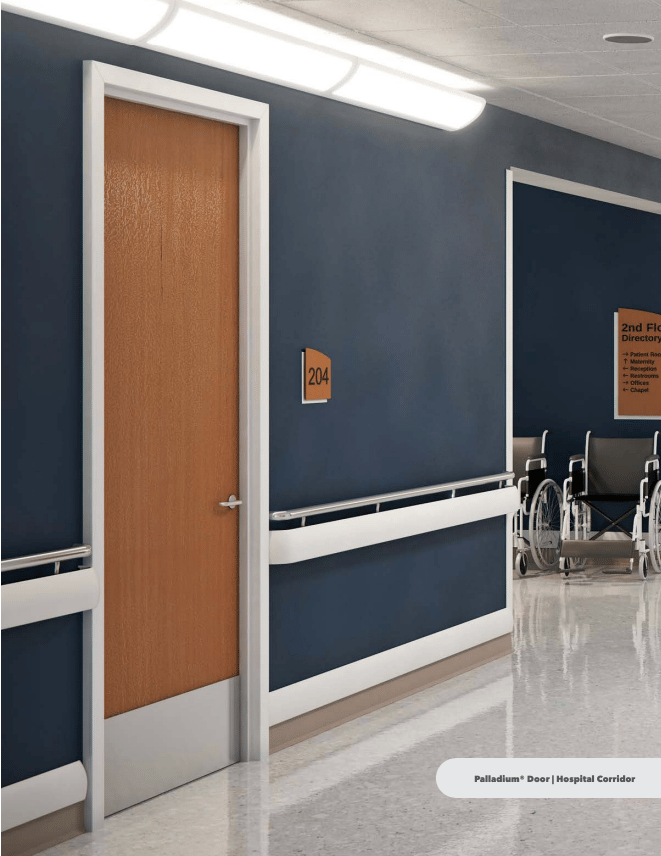

Palladium® Doors
Durable doors to handle the toughest environments! By combining the durability and design of Palladium® Rigid Sheet with the performance and quality of a VT Industries door, other doors on the market can’t compare.
Palladium Flush Edge
All sides are clad in Palladium® Rigid Sheet: front
and back, side to side.
- Available in non-rated, 20-, 45-, 60- and 90-minute fire rated constructions.
- .040" rigid sheet cladding with flush vinyl edge style.
- Wood Core Material Choices:
All standard core constructions available - Cladding Material Choices:
uPVC Rigid Vinyl, G2 PVC-Free - Color Choices:
Solid Colors, Woodgrains, Patterns, Metallics
(uPVC for solid colors only)
Palladium® With Removal Door Edge - Vinyl
Replace the edge that receives the most damage without removing the door.
Unlike competitors' edges, our removable edge is designed to fit behind a standard doorstop making the edge visible on only one side when the door is closed.
- Available in non-rated, 20-, 45-, 60- and 90-minute fire rated constructions.
- .040" rigid sheet cladding with removable vinyl edge style.
- Wood Core Material Choices:
All standard core constructions available - Cladding Material Choices:
uPVC Rigid Vinyl, G2 PVC-Free - Color Choices:
Solid Colors, Woodgrains, Patterns, Metallics
(uPVC for solid colors only)
Kickplates
Doors are relentlessly pushed, banged and kicked open. Don't let heavy traffic lead to damage. Keep your doors in pristine condition with Inpro Kick Plates.

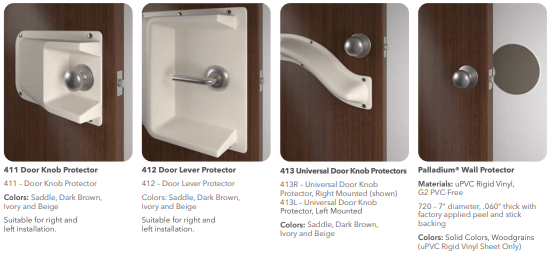

Door Knob Protectors
Defend your door knobs from cart and other traffic collisions. Choose from 4 door knob protector styles.

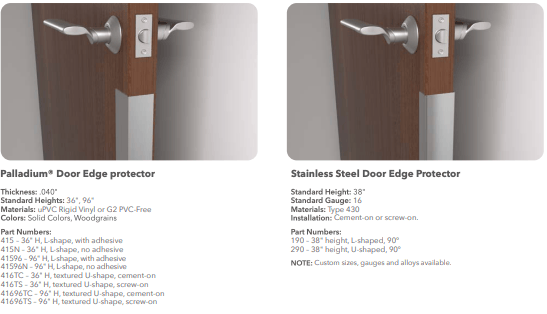

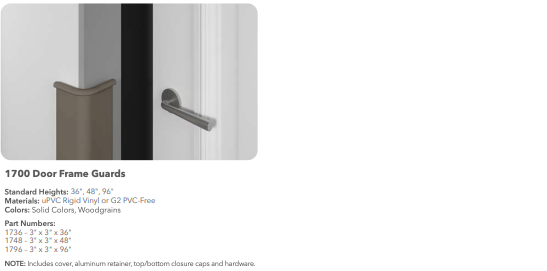

Door Frame + Edge Protection
Protect door frames from damage with Door Frame Guards and Edge Protectors. Pieces can be customized to ensure a perfect fit and lasting frame protection.

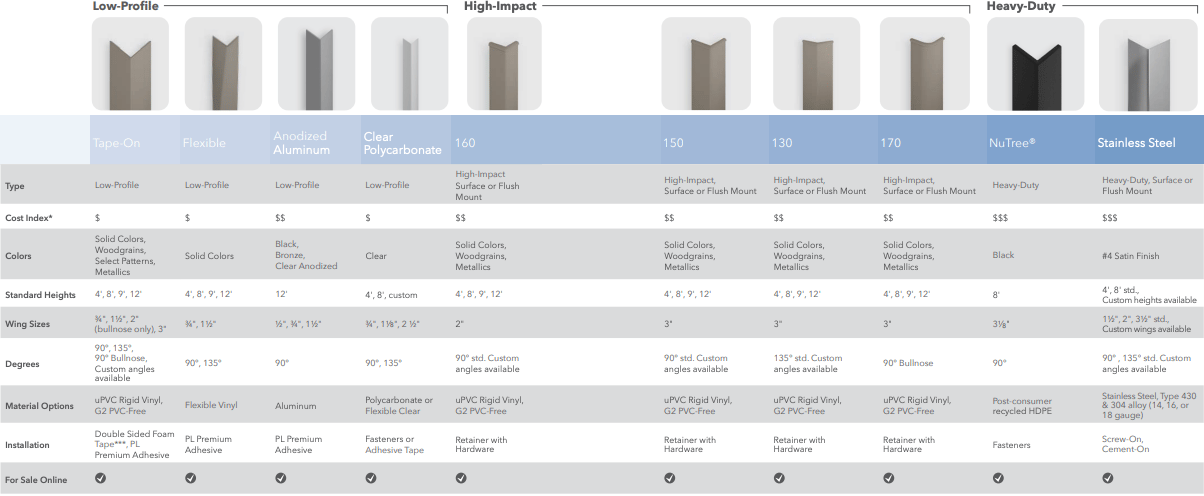

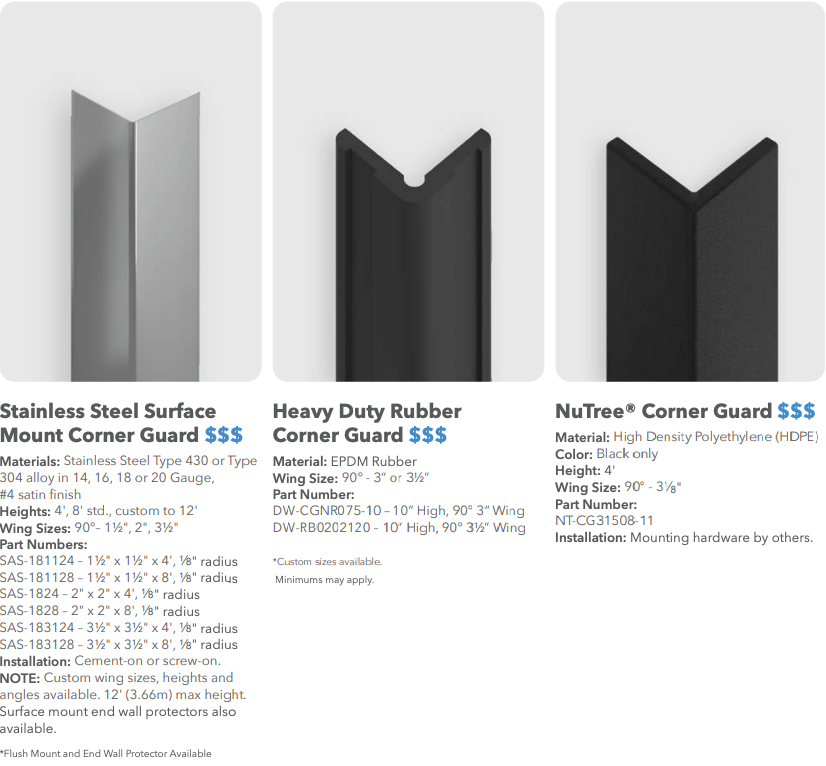

Corner Guards
Selection Guide
*Price information given is based on a range for product price only, with $ representing the most economical choice and $$$$ representing the most premium choice when comparing products of equal materials, finishes and options. Other cost considerations like shipping, taxes, minimum order charges, etc. are not accounted for in this range.
**G2 PVC-Free available in 12' (3.66m) length Solid Colors only. Other sizes custom; set up charges apply.
***G2 PVC-Free not available with tape.
****Woodgrains and Metallics only available in uPVC Rigid Vinyl.

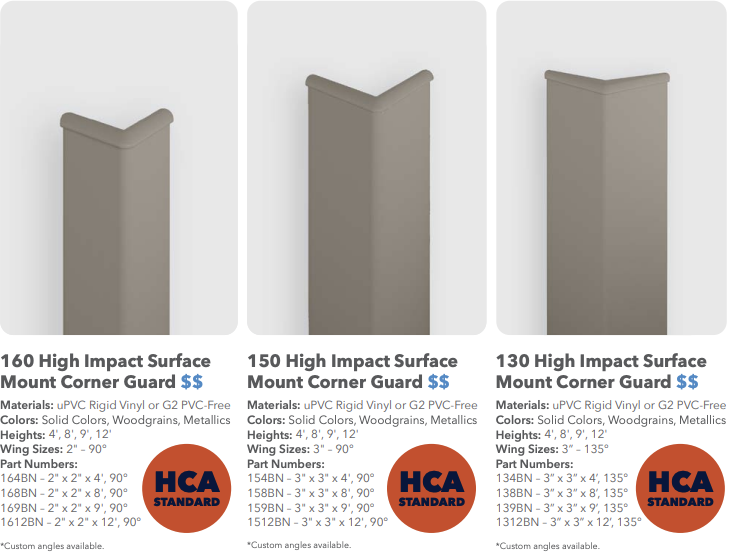

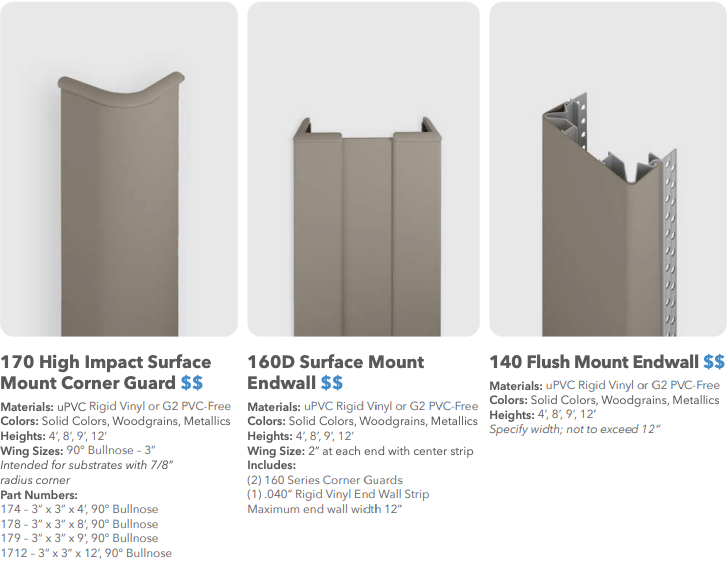

high-impact
All high-impact surface mount models are also available in Flush Mount and Fire-Rated Flush Mount versions.
high-impact
All high-impact surface mount models are also available in Flush Mount and Fire-Rated Flush Mount versions.
160F/FR Flush Mount
2" x 2"
(51mm x 51mm)
150F/FR Flush Mount
3" x 3"
(76mm x 76mm)
130F/FR Flush Mount
3" x 3"
(76mm x 76mm)
170F/FR Flush Mount
3" x 3"
(76mm x 76mm)

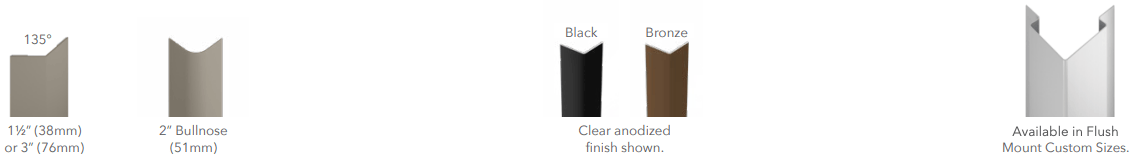

Flush Mount Fire-Rated versions available in 1 and 2 hr rating.
G2 PVC-Free only available in 12' lengths.
low-profile
heavy-duty
Specify, no tape when installing over VWC or difficult surfaces.
G2 PVC-Free only available in 12' lengths.

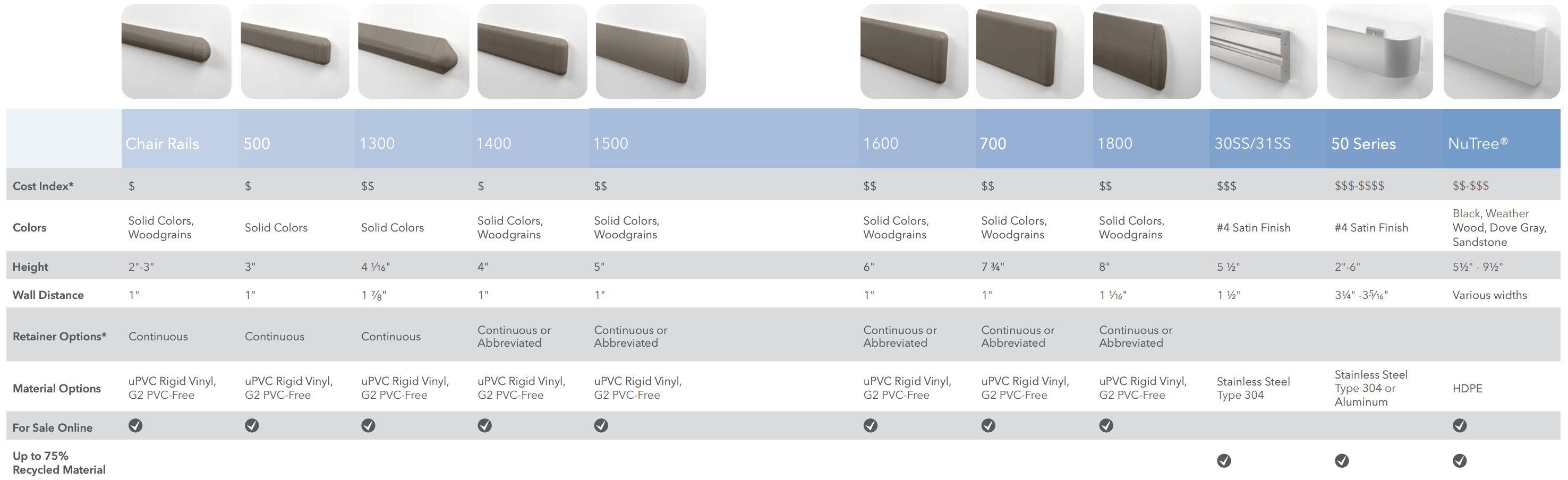

Wall Guards
Selection Guide
*Price information given is based on a range for product price only, with $ representing the most economical choice and $$$$ representing the most premium choice when comparing products of equal materials, finishes and options. Other cost considerations like shipping, taxes, minimum order charges, etc. are not accounted for in this range.
**G2 PVC-Free available in Solid Colors only.

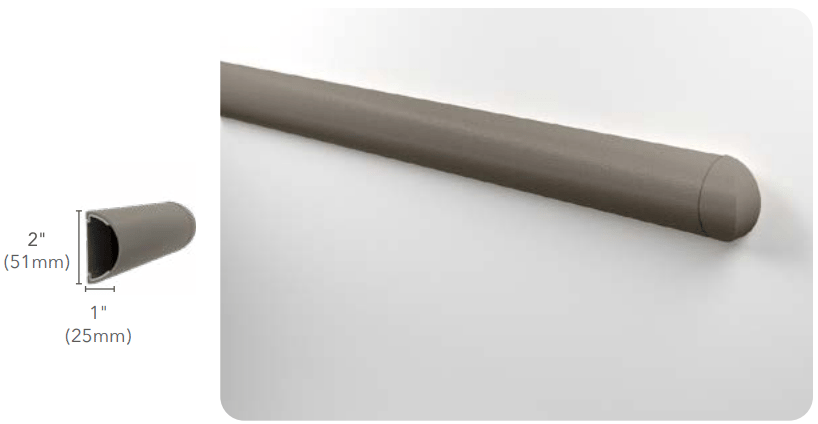

2500 Chair Rail $
Height: 2”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
2500 – Cover + aluminum retainer, 12’ length
2501 – End Cap
2502 – Outside Corner
2503 – Inside Corner
2504 – Picture Frame Corner (Solid Colors Only)

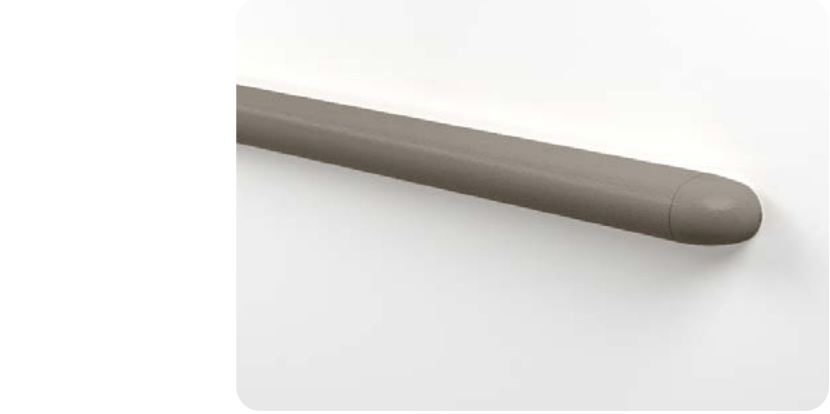

200 Wall Guard $
Height: 11/8”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors
Part Numbers:
200 – Cover + aluminum retainer, 12’ length
201 – End Cap
202 – Outside Corner
202135 - 135° Outside Corner
207 – Inside Corner

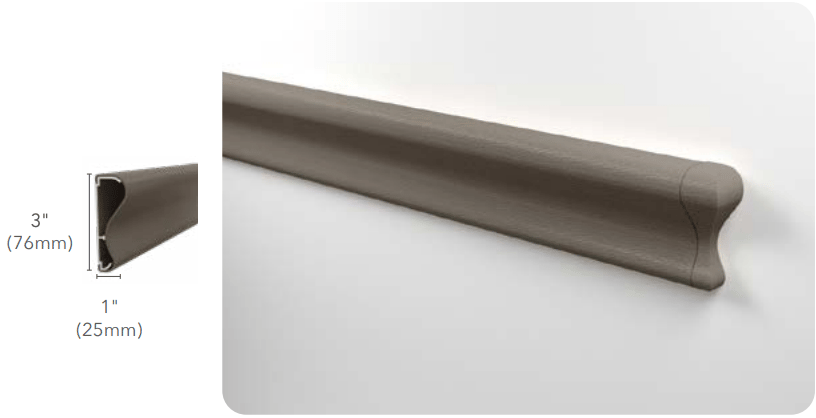

2600 Chair Rail $
Height: 3”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
2600 – Cover + aluminum retainer, 12’ length
2601L – Left End Cap
2601R – Right End Cap
2602 – Outside Corner
2603 – Inside Corner

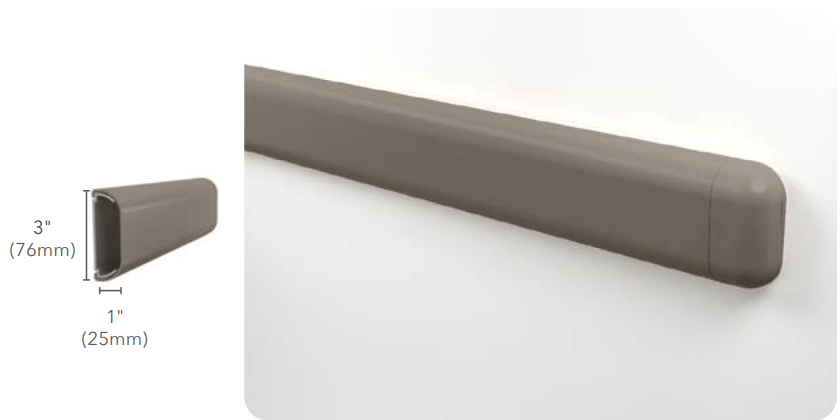

500 Wall Guard $
Height: 3”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors
Part Numbers:
500 – Cover + aluminum retainer, 12’ length
502 – End Cap
503 – Outside Corner
507 – Inside Corner
501 – Optional ½” thick 2” dia. rubber spacer

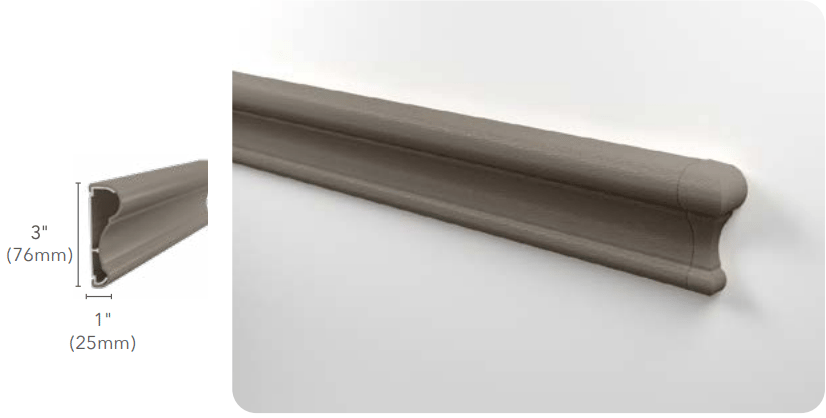

2700 Chair Rail $
Height: 3”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
2700 – Cover + aluminum retainer, 12’ length
2701L – Left End Cap
2701R – Right End Cap
2702 – Outside Corner
2703 – Inside Corner (Solid Colors Only)

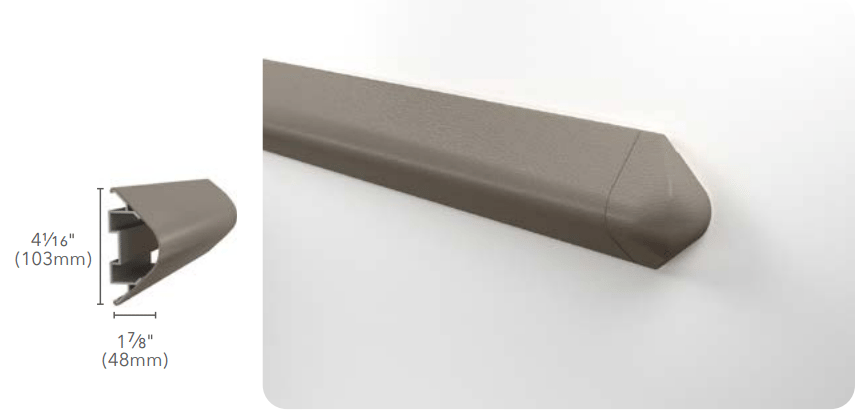

1300 Wall Guard $$
Height: 4 1/16”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors
Part Numbers:
1300 – Cover + aluminum retainer, 12’ length
1302 – End Cap
1303 – Outside Corner
1307 – Inside Corner
501 – Optional
1/2” thick x 2” dia. rubber spacer

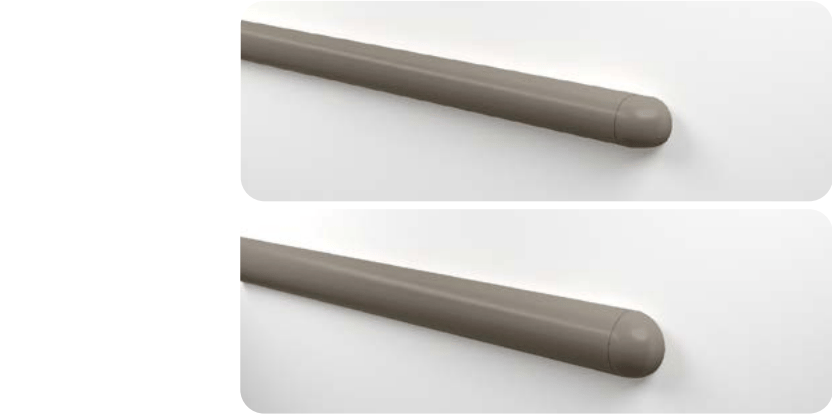

Cart Guard $
Height: 1” or 2”
Material: Flexible Vinyl
Colors: Stock colors - Beige, Blue, Gray, Red, Black
Part Numbers:
MB10 – 1” Mounting Base - 6’ or 12’ sections
MT15FX – 1” Flexible Top - 72’ roll
ME10 – End Cap
MC10 – Outside Corner
MB20 – 2” Mounting Base - 6’ or 12’ sections
MT25FX – 2” Flexible Top- 72’ roll
ME20 – End Cap
MC20 – Outside Corner

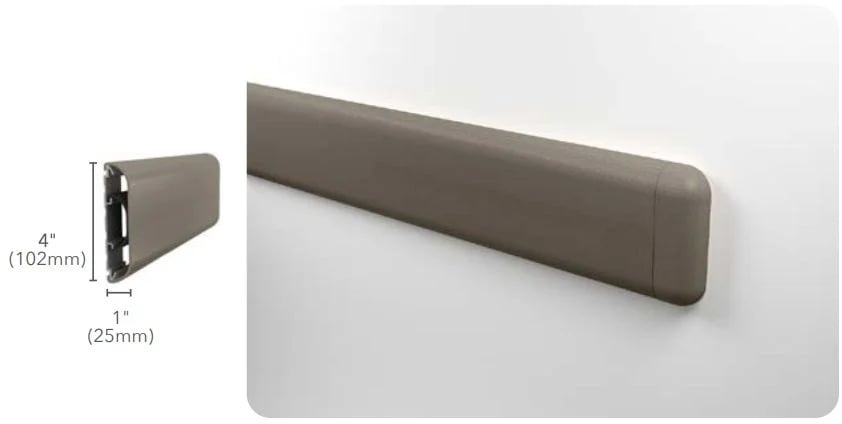

1400 Wall Guard $
Height: 4”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains

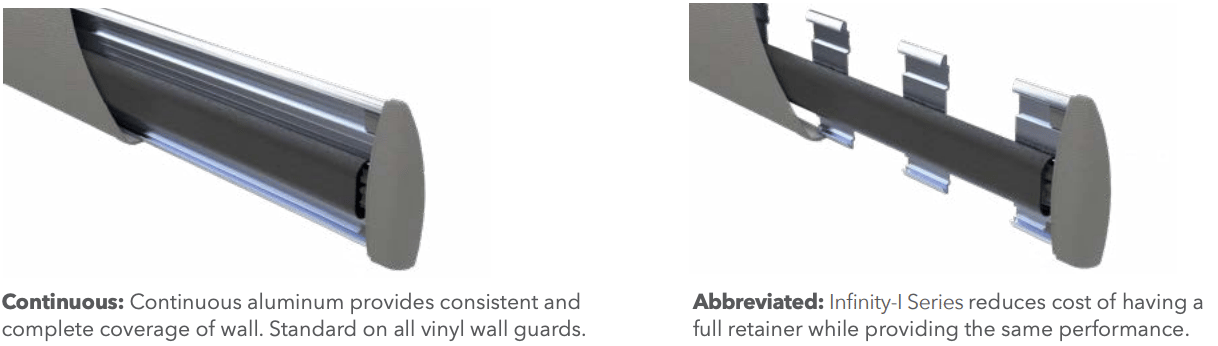

Retainer Options: Continuous or Abbreviated
Part Numbers:
1400 – Cover, aluminum retainer + bumper, 12’ length
1402 – End Cap
1403 – Outside Corner
1407 – Inside Corner
501 – Optional
1/2” thick x 2” dia. rubber spacer

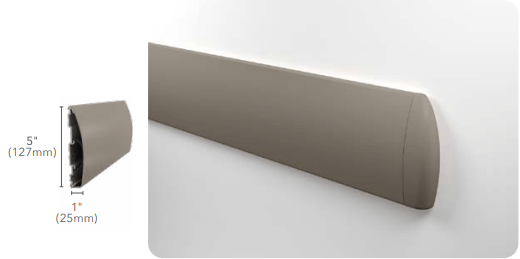

1500 Wall Guard $$
Height: 5”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Retainer Options: Continuous or Abbreviated
Part Numbers:
1500 – Cover, aluminum retainer + bumper, 12’ length
1501L – Left End Cap
1501R – Right End Cap
1502 – Outside Corner
1503 – Inside Corner
1601 – Optional ½” thick 4” oval rubber spacer

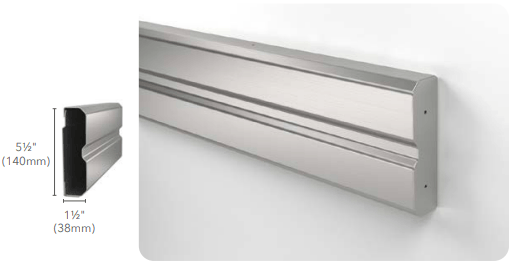

30SS Wall Guard $$$
Height: 5½”
Material: Stainless Steel, Type 430 and Type 304 alloy
Part Numbers:
30SS – Stainless Steel Wall Guard
30SSLEC – Stainless Steel Left End Cap
30SSREC – Stainless Steel Right End Cap
30SSRS – Stainless Steel Retainer Support

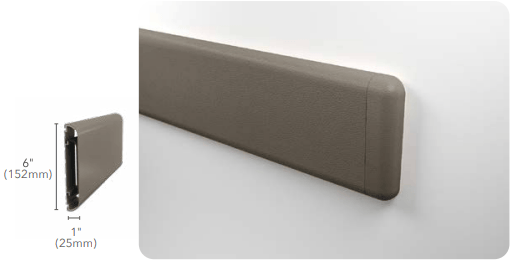

1600 Wall Guard $$
Height: 6”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Retainer Options: Continuous or Abbreviated
Part Numbers:
1600 – Cover, aluminum retainer + bumper, 12’ length
1622 – End Cap
1623 – Outside Corner
1627 – Inside Corner
1606A – Optional Aluminum Splice
1601 – Optional 1/2” thick 4” oval rubber spacer

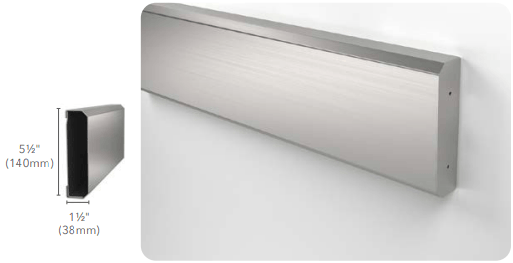

31SS Wall Guard $$$
Height: 5½”
Material: Stainless Steel, Type 304 alloy
Part Numbers:
31SS – Stainless Steel Wall Guard
31SSLEC – Stainless Steel Left End Cap
31SSREC – Stainless Steel Right End Cap
30SSRS – Stainless Steel Retainer Support

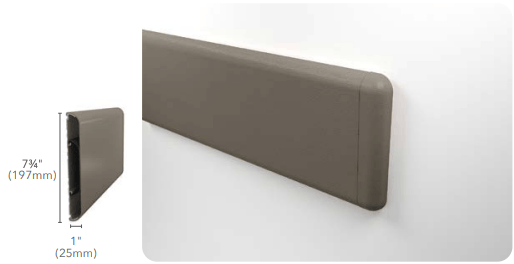

700 Wall Guard $$
Height: 7¾”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Retainer Options: Continuous or Abbreviated
Part Numbers:
700 – Cover, aluminum retainer + bumper, 12’ length
701 – End Cap
702 – Outside Corner
707 – Inside Corner (Solid Colors Only)
706A – Optional Aluminum Splice
1601 – Optional ½” thick 4” oval rubber spacer

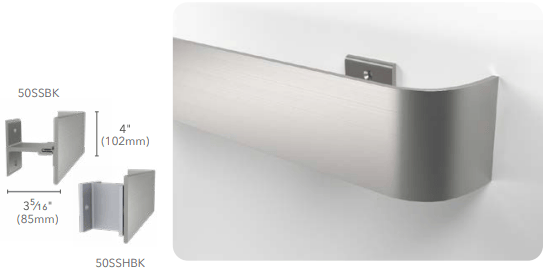

50SS Wall Guard $$$$
Height: 4”
Material: Stainless Steel, Type 304 alloy
Part Numbers:
50SS/50SSH – Stainless Steel Wall Guard
50SSLR – Stainless Steel Left Return
50SSRR – Stainless Steel Right Return
50SSOC – Stainless Steel Outside Corner
50SSIC – Stainless Steel Inside Corner
50SSBK – Aluminum Bracket
50SSHBK – Aluminum Bracket

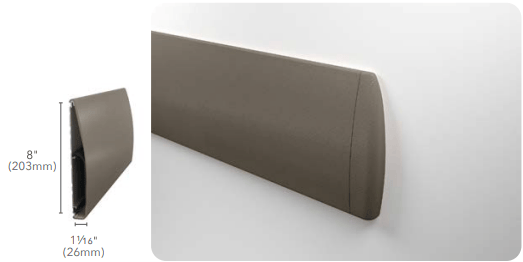

1800 Wall Guard $$
Height: 8”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Retainer Options: Continuous or Abbreviated
Part Numbers:
1800 – Cover, aluminum retainer + bumper, 12’ length
1801L – Left End Cap
1801R – Right End Cap
1802 – Outside Corner
1803 – Inside Corner
706A – Aluminum Splice
1601 – Optional ½” thick 4” oval rubber spacer

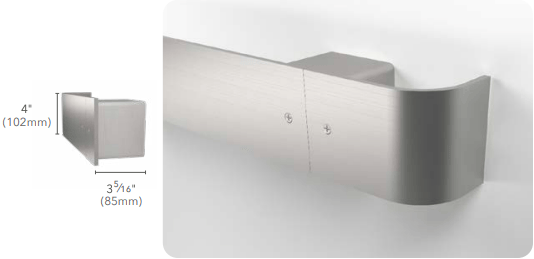

51SS Wall Guard $$$$
Height: 4”
Material: Stainless Steel, Type 304 alloy
Part Numbers:
51SS – Stainless Steel Wall Guard
51SSLR – Stainless Steel Left Return
51SSRR – Stainless Steel Right Return
51SSOC – Stainless Steel Outside Corner
51SSIC – Stainless Steel Inside Corner
51SSBK – Aluminum Bracket
NOTE: Stainless Steel Wall Guards come in factory pre-cut sections fabricated to field measurements and are non-returnable. Contains up to 75% post-consumer recycled material.

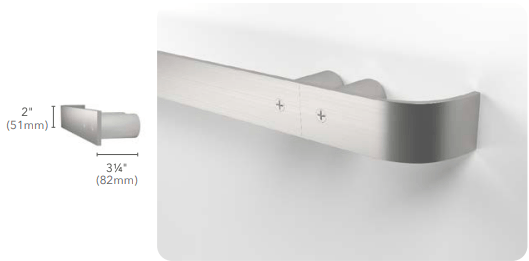

52SS Wall Guard $$$$
Height: 2”
Material: Stainless Steel, Type 304 alloy
Part Numbers:
52SS – Stainless Steel Wall Guard
52SSLR – Stainless Steel Left Return
52SSRR – Stainless Steel Right Return
52SSOC – Stainless Steel Outside Corner
52SSIC – Stainless Steel Inside Corner
52SSBK – Stainless Steel Bracket

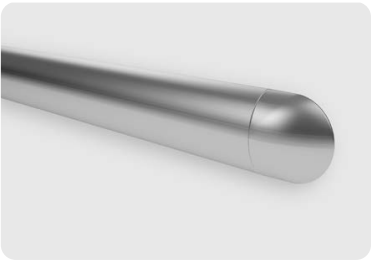

NEW! 20SS Stainless Steel Bumper Rail $$
Height: 2”
Material: Stainless Steel, Type 304 Alloy
Part Numbers:
20SS – Cover: 8' Length Cover
20SS – Base: 8' Length Mounting Base
20SS-EC – End Cap
20SS-OC – Outside Corner
20SS-QSEC – Quick Stop End Cap
53SS Wall Guard $$$$
Height: 3”
Material: Stainless Steel, Type 304 alloy
Part Numbers:
53SS – Stainless Steel Wall Guard
53SSRR – Stainless Steel Right Return
53SSLR – Stainless Steel Left Return
53SSIC – Stainless Steel Inside Corner
53SSOC – Stainless Steel Outside Corner
52SSBK – Stainless Steel Bracket
NuTree® Wall Guard $$$-$$$$
Thickness: ½” – 1½”
Height: 5½” – 9½”
Material: High Density Polyethylene (HDPE)
Colors: Stock Colors - Black, Weather Wood, Dove Gray, Sandstone
Part Numbers:
NT–140 – ½” Thick x 8” High x 12’ Length
NT–518 – 1” Thick x 5½” High x 12’ Length
NT–690 – 1½” Thick x 5½” High x 12’ Length
NT–694 – 1½” Thick x 7½” High x 12’ Length
NT–695 – 1½” Thick x 9½” High x 12’ Length
NOTE: Custom sizes, shapes and colors available with minimums. Hardware provided by others.

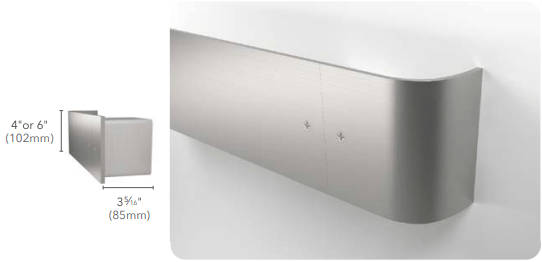

56SS Wall Guard $$$$
Height: 4” or 6”
Material: Stainless Steel, Type 304 alloy
Part Numbers:
56SSF – 4” High Stainless Steel Wall Guard
56SSB – 6” High Stainless Steel Wall Guard
56SSFLR – Stainless Steel Left Return
56SSFRR – Stainless Steel Right Return
56SSFOC – Stainless Steel Outside Corner
56SSFIC – Stainless Steel Inside Corner
51SSBK – Stainless Steel Bracket

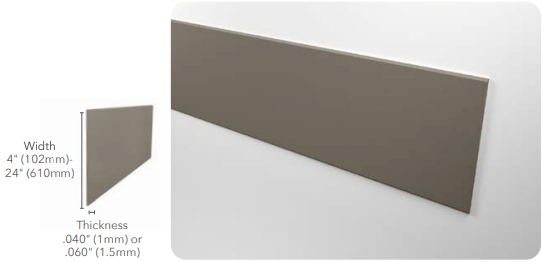

Palladium® Rubrail $
Height: 4” – 24”
Thickness: .040” or .060”
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains, Metallics
Part Numbers:
R4 – .040” Thick, 4” to 24” High x 96” Length
R6 – .060” Thick, 4” to 24” High x 96” Length
Top/bottom edges factory beveled.
Installation: Install with Contact Adhesive, Inpro® Bond Adhesives or 3M Fastbond 30

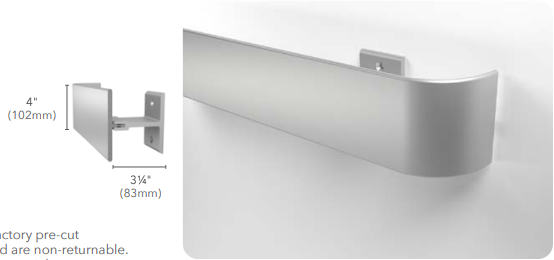

50AA Wall Guard $$
Height: 4”
Material: Aluminum
Part Numbers:
50AA – Aluminum Wall Guard, 12’
50AALR – Aluminum Left Return
50AARR – Aluminum Right Return
50AAIC – Aluminum Inside Corner
50AAOC – Aluminum Outside Corner
50AABK – Aluminum Bracket
NOTE: Material field cut on-site

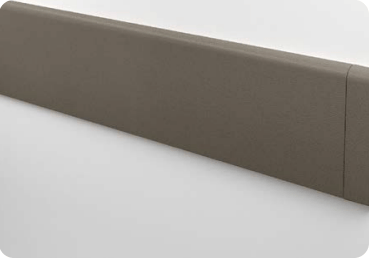

High Impact Wall Base $$
Height: 4”
Material: uPVC Rigid Vinyl
Part Numbers:
WB4 – Wall Base 4” x 8’ Length
WB4IC – Inside Corner
WB4LEC – Left End Cap
WB4OC – Outside Corner
WB4REC – Right End Cap
NOTE: Stainless Steel Wall Guards come in factory pre-cut sections fabricated to field measurements and are non-returnable. Contains up to 75% post-consumer recycled material.
handrails

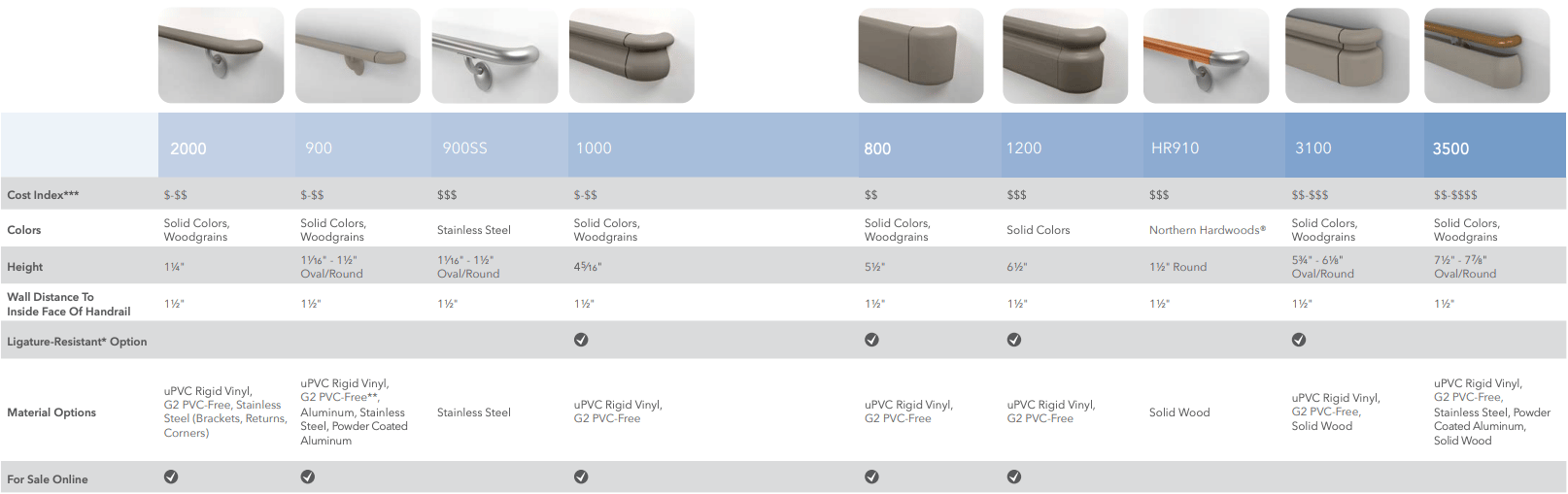

Selection Guide
*This product does not guarantee patient safety.
**G2 PVC-Free available in Solid Colors only.
***Price information given is based on a range for product price only, with $ representing the most economical choice and $$$$ representing the most premium choice when comparing products of equal materials, finishes and options. Other cost considerations like shipping, taxes, minimum order charges, etc. are not accounted for in this range.
Real Wood profiles are available, visit inpro.com to view the full offering.

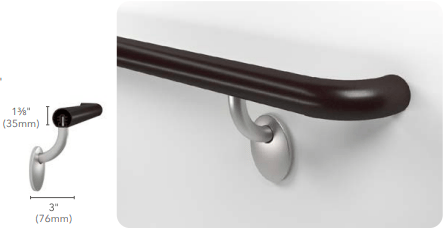

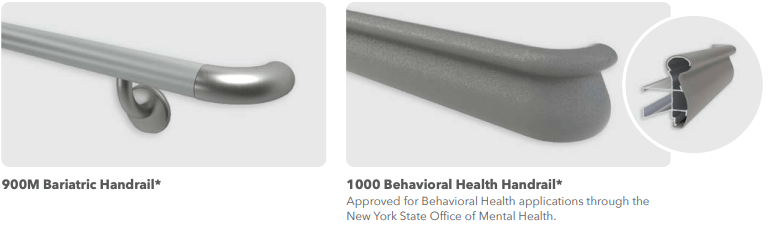

900M Handrail $$
Material: Powder-coated Aluminum
Colors: Metal Tones
Part Numbers:
900M – 1½" dia. Handrail with Powder Coat Finish, 12'
909SS- MRND Stainless Steel Mounting Bracket
910SS – Stainless Steel Mounting Bracket
910MSS – Powder Coated Bracket
RET9SS – Stainless Steel Return
RET9PC – Powder Coated Return
CRN9SS – Stainless Steel
Inside/Outside Corner
CRN9PC – Powder Coated
Inside/Outside Corner

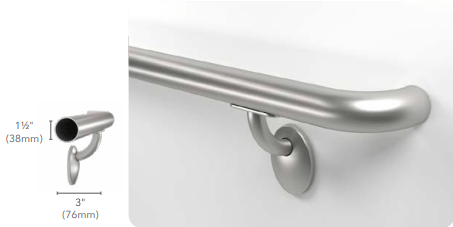

900SSR Round Stainless Steel Handrail $$$
Material: Type 304 Stainless Steel
Finish: #4 Brushed Finish
Part Numbers:
900SSR-FT – 1½” Round Stainless Steel Handrail (per LF)
909SS- MRND Stainless Steel Mounting Bracket
909SS-SDL – Stainless Steel Mounting Bracket
902SSR-RET – Stainless Steel Return
903SSR-COR – Stainless Steel Corner 90°
906SSR-SPL – Stainless Steel Splice*
*Pre-configured custom product
Not returnable.

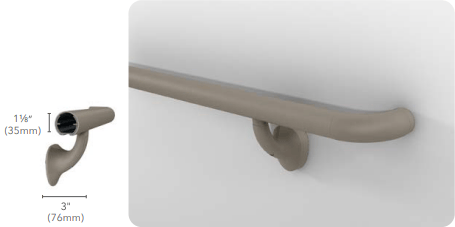

910 Round Handrail $
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
910 – 1½” dia. round Handrail with Cover and Aluminum Retainer, 12' Length
908 – Vinyl Mounting Bracket
909SS- MRND Stainless Steel Mounting Bracket
909SS – Stainless Steel Mounting Bracket
912 – Left Return
912SS – Stainless Steel Return
913 – Right Return
914 – Inside/Outside Corner 90°
914SS – Stainless Steel Inside/Outside Corner 90°

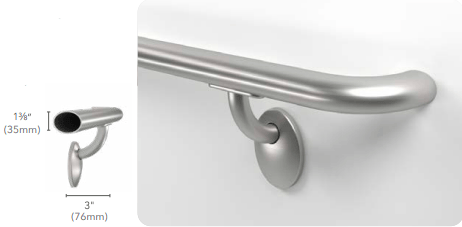

900SSO Oval Stainless Steel Handrail $$$
Material: Type 304 Stainless Steel
Finish: #4 Brushed Finish
Part Numbers:
900SSO-FT – 1⅝” oval Stainless Steel Handrail (per LF)
909SS- MRND Stainless Steel Mounting Bracket
909SS-SDL – Stainless Steel Mounting Bracket
902SSO-RET – Stainless Steel Oval Return
903SSO-COR – Stainless Steel Oval Corner 90°
906SSO-SPL – Stainless Steel Oval Splice*
*Pre-configured custom product.
Not returnable.

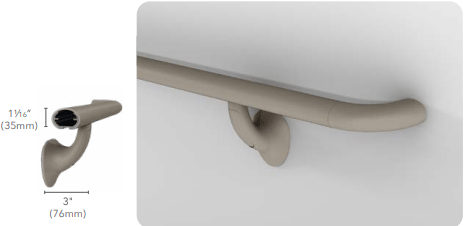

920 Oval Handrail $
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
920 – 1½” dia. oval Handrail w/cover + Aluminum retainer, 12’
908 – Vinyl Mounting Bracket
909SS- MRND Stainless Steel Mounting Bracket
909SS – Stainless Steel Mounting Bracket
922 – Left Return
922SS – Stainless Steel Return
923 – Right Return
924 – Inside/Outside Corner 90°
924SS – Stainless Steel Inside/Outside Corner 90°

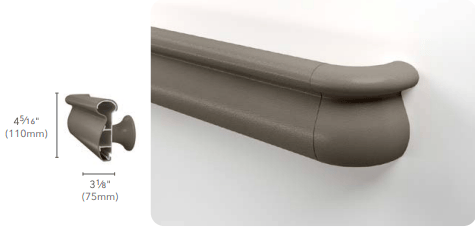

1000 Handrail $
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
1000 – 4⅚” Height Handrail with Cover and Aluminum Retainer, 12’
1001 – Handrail Mounting Bracket
1002 – Left Return
1003 – Right Return
1004 – Outside Corner 90°
1004135 – Outside Corner 135°
1005 – Inside Corner 90°
1005135 – Inside Corner 135°
804 – Splice

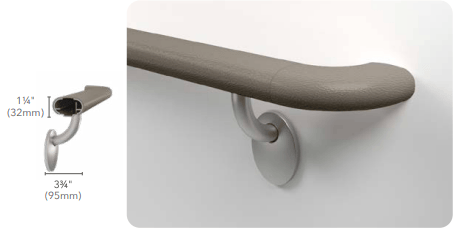

2000 Handrail $$
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
2000 – 1¼” Height, 2¼” Grip Handrail with Cover and Aluminum Retainer, 12’
2001 – Vinyl Mounting Bracket
2001SS – Stainless Steel Mounting Bracket
2002 – Left Return
2003 – Right Return
2004 – Inside/Outside Corner 90°
2004135 – Inside/Outside Corner 135°
906 – Splice

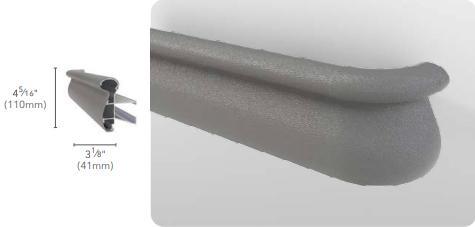

1000 Behavioral Health Ligature Resistant Handrail $$
Size: 4⅚” height x 1⅝” (41mm) gripping surface
Manufactured in 12’ standard lengths
Continuous Retainer/Bracket
Material: uPVC Rigid Vinyl, G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
1002BH – Left Return
1003BH – Right Return
804 – Splice

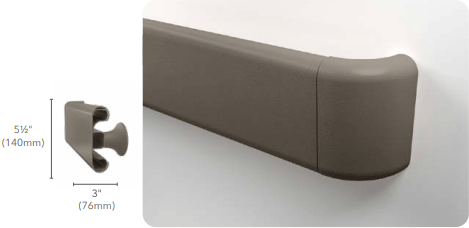

800 Handrail $$
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors, Woodgrains
Part Numbers:
800 – 5½” Height with Cover and Aluminum Retainer, 12’
1001 – Mounting Bracket
802 – Return
803 – Outside Corner
803135 – 135° Outside Corner
804 – Splice
805 – Inside Corner
805135 – 135° Inside Corner
CBRKLF – Continuous Mounting Bracket

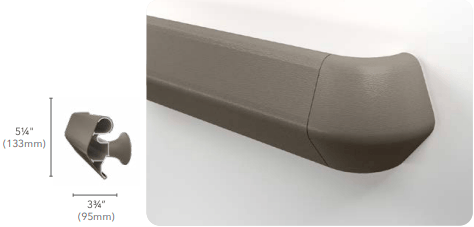

1100 Handrail $$
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors
Part Numbers:
1100 – 5¼” Height with Cover and Aluminum Retainer, 12’
1001 – Mounting Bracket
1102 – Left Return
1103 – Right Return
1104 – Outside Corner 90°
804 – Splice
CBRKLF – Continuous Mounting Bracket
3100 Series Handrail $$-$$$
Size: 6⅛" overall height, 1½" grip top rail with 4" bumper rail – 12' length
Material: uPVC Rigid Vinyl, G2 PVC-Free or Solid Wood (Top rail only)
Colors: Solid Colors, Woodgrains
Part Numbers:
3110 – Round – Vinyl or G2 Top Rail
3112 – Round – Left Return
3113 – Round – Right Return
3114 – Round – Outside Corner 90°
3115 – Round – Inside Corner 90°
3120 – Round Wood Top Rail
3130 – Oval – Vinyl or G2 Top Rail
3132 – Oval – Left Return
3133 – Oval – Right Return
3134 – Oval – Outside Corner 90°
3135 – Oval – Inside Corner 90°
804 – Splice
1001 – Mounting Bracket
Finish Options (select top and bottom rail and add as suffix to part number):
VV – Vinyl Top/Vinyl Bottom
FVV – Woodland Top/Vinyl Bottom
VFV – Vinyl Top/Woodland Bottom
FVFV – Woodland Top/Woodland Bottom

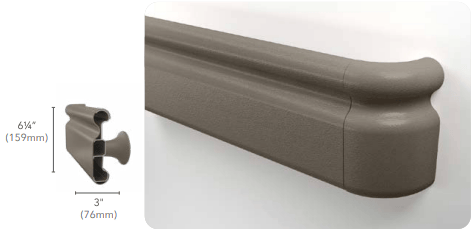

1200 Handrail $$$
Material: uPVC Rigid Vinyl or G2 PVC-Free
Colors: Solid Colors
Part Numbers:
1200 – 6¼" Height with Cover and Aluminum Retainer, 12'
1001 – Mounting Bracket
1202 – Left Return
1203 – Right Return
1204 – Outside Corner 90°
1204135 – Outside Corner 135°
1205 – Inside Corner 90°
1205135 – Inside Corner 135°
804 – Splice
CBRKLF – Continuous Mounting Bracket
HR910 Wood Handrail $$$
Material: Solid Wood
Stain: Northern Hardwoods
Part Numbers:
HR910M – 1⅜” Height with 1½” Grip, Round Maple
909SS-MRND – Bracket
910SS – Stainless Steel Bracket
RETS9SS – Stainless Steel Return
CRN9SS – Stainless Steel Corner

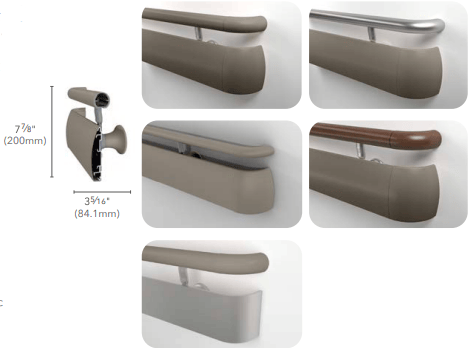

3500 Series Handrail $$$-$$$$
Size: 7⅞" overall height, 1½" grip top rail with 5" bumper rail – 12' length
Material: uPVC Rigid Vinyl, G2 PVC-Free, Solid Wood (top rail only), Stainless Steel
Colors: Solid Colors, Woodgrains, Metallics
Part Numbers:
3510 – Round – Vinyl or G2 Top Rail
3520 – Round – Wood Top Rail
3512 – Round – Left Return
3513 – Round – Right Return
3514 – Round – Outside Corner 90°
3515 – Round – Inside Corner 90°
3530 – Oval – Vinyl or G2 Top Rail
3532 – Oval – Left Return
3533 – Oval – Right Return
3534 – Oval – Outside Corner 90°
3535 – Oval – Inside Corner 90°
804 – Splice
3501 – Stainless Steel Mounting Stem with Plastic Bracket
3501D – Dual Bracket
3511 – Dual Bracket
Finish Options (select top and bottom rail and add as suffix to part number):
VV – Vinyl Top/Vinyl Bottom
FVV – Woodland Top/Vinyl Bottom
VFV – Vinyl Top/Woodland Bottom
FVFV – Woodland Top/Woodland Bottom
Sustainability
We make a lot of things.
A difference is one of them.
As a manufacturer, it’s not just about being a sustainable company, it’s about being a responsible company. While we make a lot of things, we’re also mindful about our impact socially, economically and environmentally.
Plastic Recycling Program for
Palladium Rigid Vinyl.
Inpro launched the industry’s first vinyl recycling program in 2002, and now we’re taking our recycling program to the next generation.
By taking advantage of our recycling program, you not only divert used material from the landfill, you also cut down on the amount of new plastics used since the recycled material can be reground into other products.
Getting credit for being green: Inpro will issue a credit certificate (valid for one year) toward purchase of new Inpro products. The amount of credit will be $1.50 per pound of returned material.
Materials accepted:
Currently we are only able to recycle known and separated materials.
- Separate and cut Inpro plastic products per the table below.
- Number the boxes being returned.
- Check one column option per box on the table below to identify the contents of each box. If returning more than 12 boxes, use multiple forms as needed.
- Email or FAX the completed form(s) to Inpro Customer Service for return authorization (customerservice@inprocorp.com or 888.715.8407).
- Enclose the form(s) into box #1 and ship the boxes.
Ship to:
Inpro Corporation Plastic Recycling Program East Building Dock – Receiving S80 W18766 Apollo Dr. Muskego, WI 53150
| Box# | Inpro only vinyl sheet. No material with adhesive. 2' × 4' max. sections. | Inpro only vinyl handrails, corner guards, and/or wall-guard covers. No blue-nose retainers. No material with adhesive. 3' max. pieces | Inpro G2 sheet. No material with adhesive. 2' × 4' max. sections. | Inpro G2 handrails, corner-guard retainers, and/or wall-guard covers. No blue-nose retainers. No material with adhesive. 3' max. pieces |
|---|---|---|---|---|
| Submitted By: | ||
|---|---|---|
| Company Name | ||
| Facility Name | ||
| Customer Name | Customer Number: | |
| Address | ||
| City, State, Zip Code | ||
| Phone | ||
| Email or Fax | ||
